Phaser 4600/4620/4622 Printer Service Manual
REP 12.5
Revised
4 Repairs and Adjustments

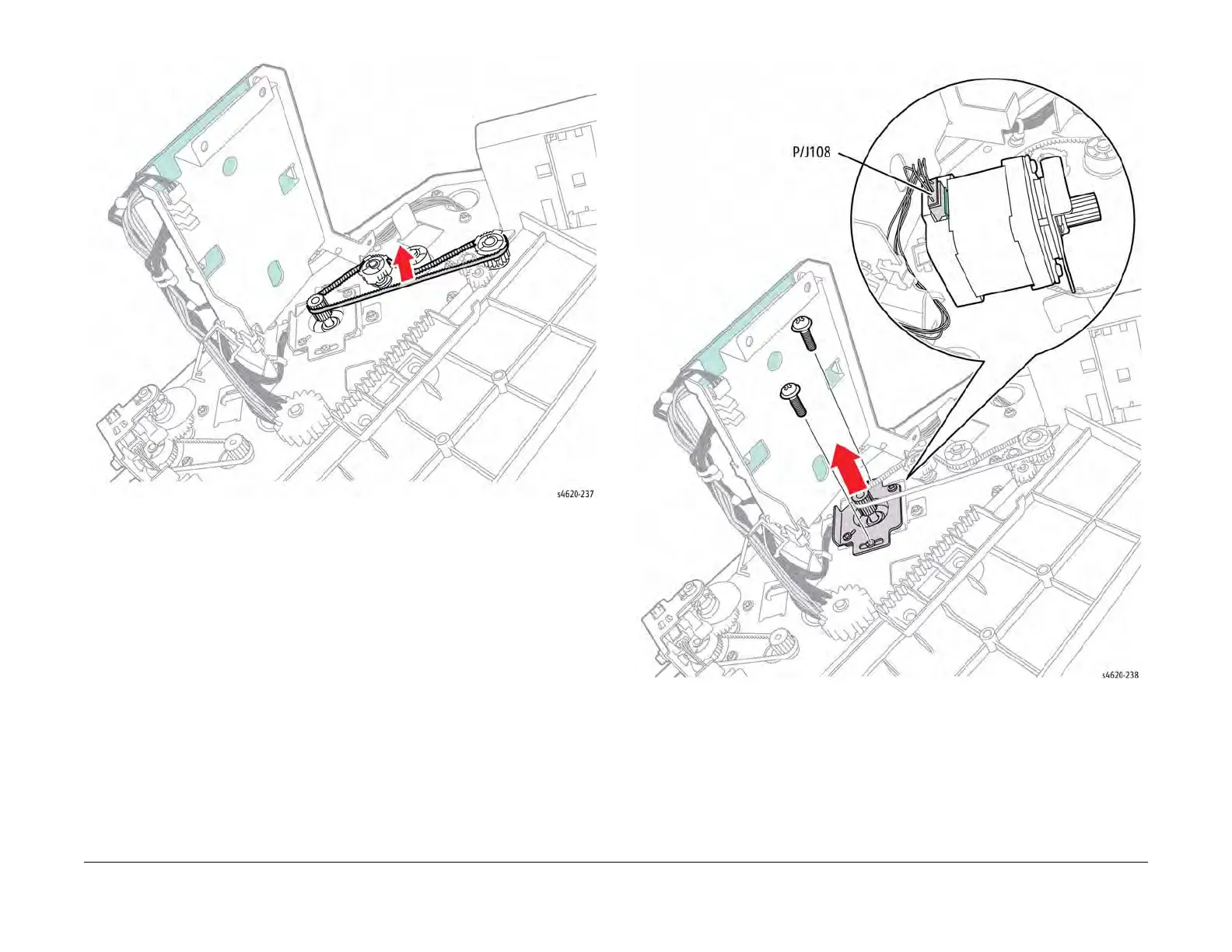

Figure 3 Remove the drive belt
6. Mark the position of the bracket in relation to the frame.
7. Remove 2 screws (metal) that secure the motor bracket to the frame.
8. Disconnect P/J108 from the motor and remove the motor, Figure 4.
Figure 4 Remove the Transport Drive Assembly
