Xerox Phaser 4600 Service Manual

04/2016
4-18
Phaser 4600/4620/4622 Printer Service Manual
REP 3.6
Revised
4 Repairs and Adjustments

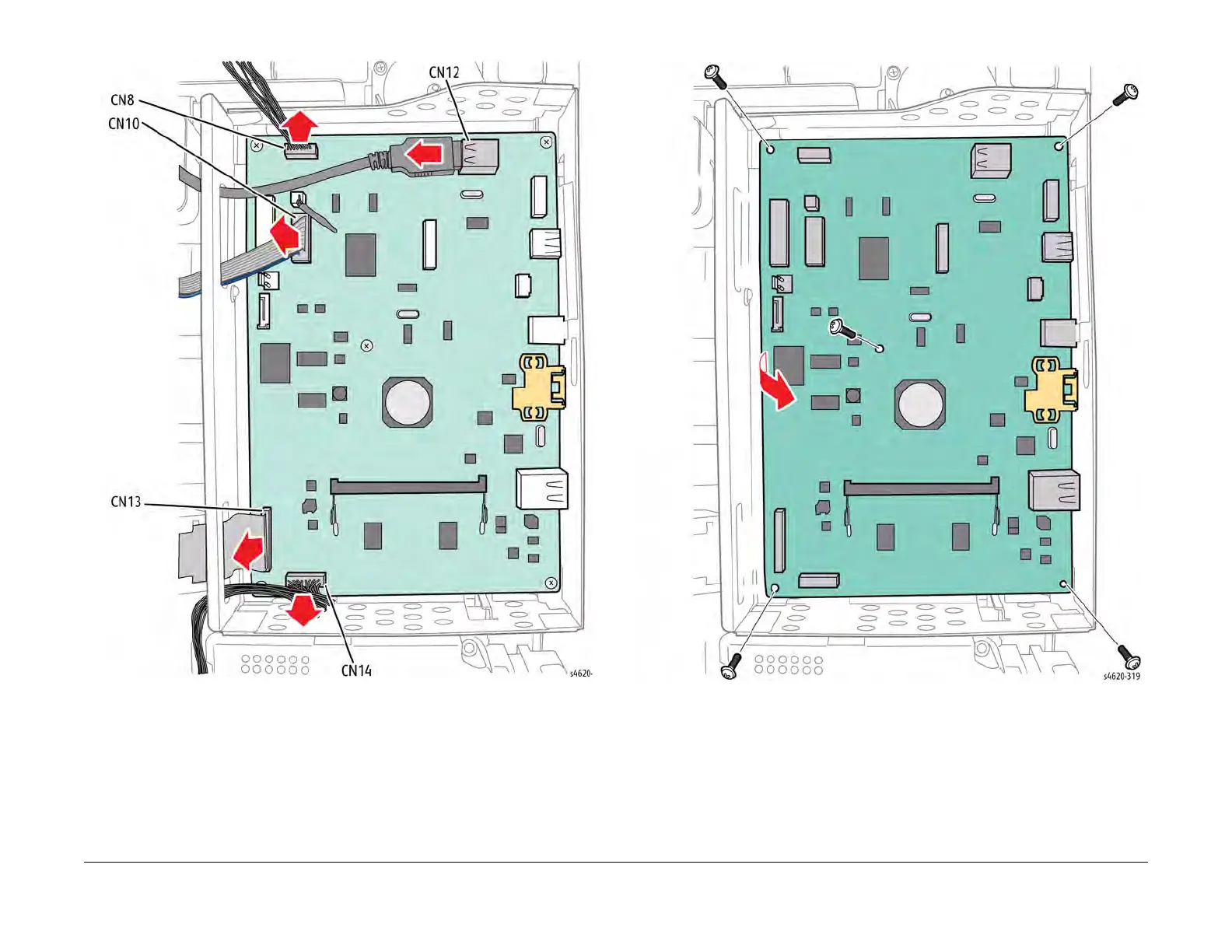

Figure 1 Disconnect the IP Board
5. Remove 5 screws (metal) and swing the front edge out to release the connectors from the
rear panel, Figure 2.
Figure 2 Remove the IP Board
Replacement
After removal of the IP Board from the cage, move the Configuration Card, Configuration Card
holder and if installed, optional Memory and Hard Drive to the new board.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
