Phaser 4600/4620/4622 Printer Service Manual
REP 4.2
4 Repairs and Adjustments
Revised

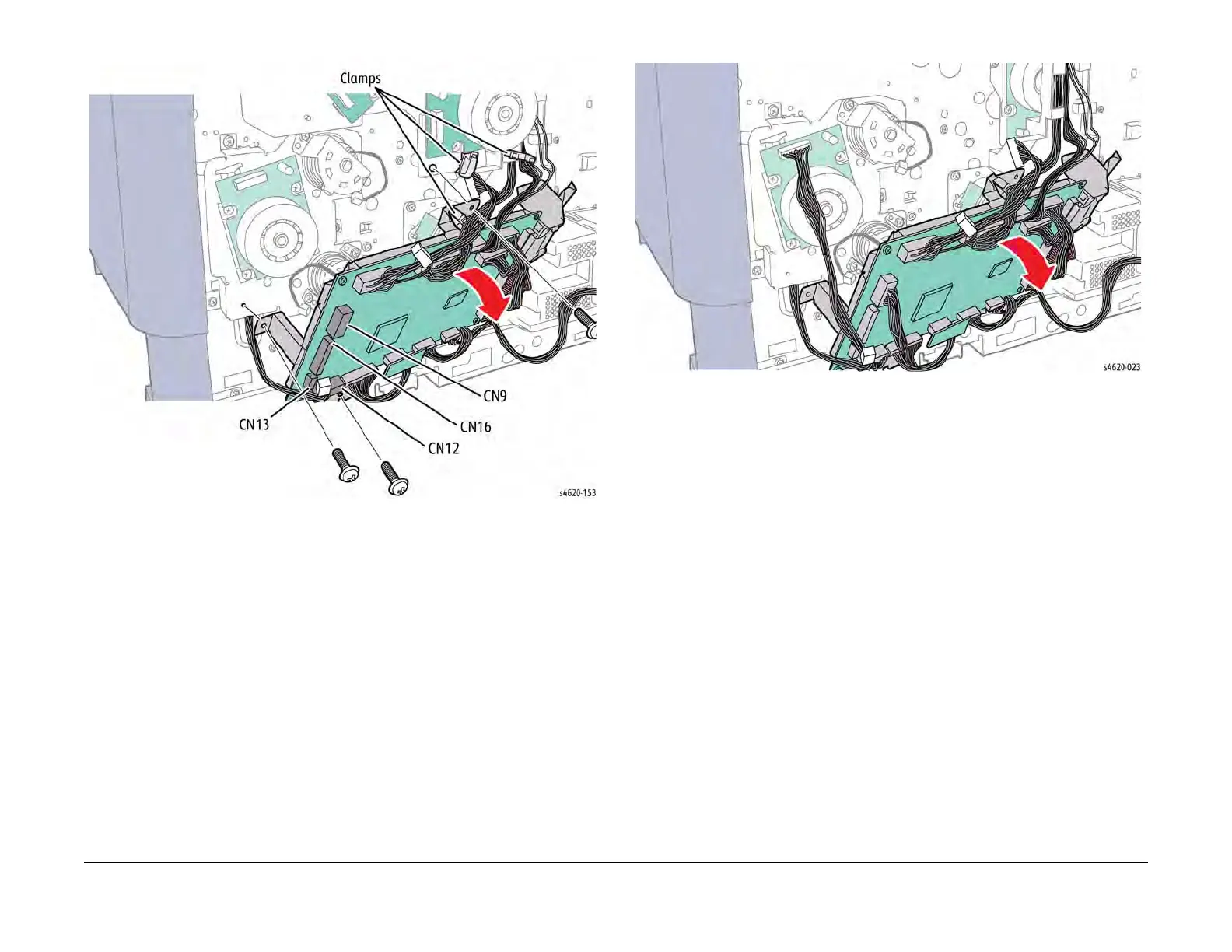

Figure 1 Disconnect the MCU Board
9. Lift the MCU Board bracket to release the tabs and move the board out and right to
access the clutch, Figure 2.
Figure 2 Loosen the MCU Board and bracket to access the clutch
10. Disconnect P/J52 from the Tray 2 Feed Clutch.
11. Remove 2 screws (Gold, metal) that secure the clutch bracket to the Feed Drive.
12. Remove the E-ring that secures the clutch to the shaft, Figure 3.
