4-27
Phaser 4600/4620/4622 Printer Service Manual
REP 7.3
4 Repairs and Adjustments
Revised

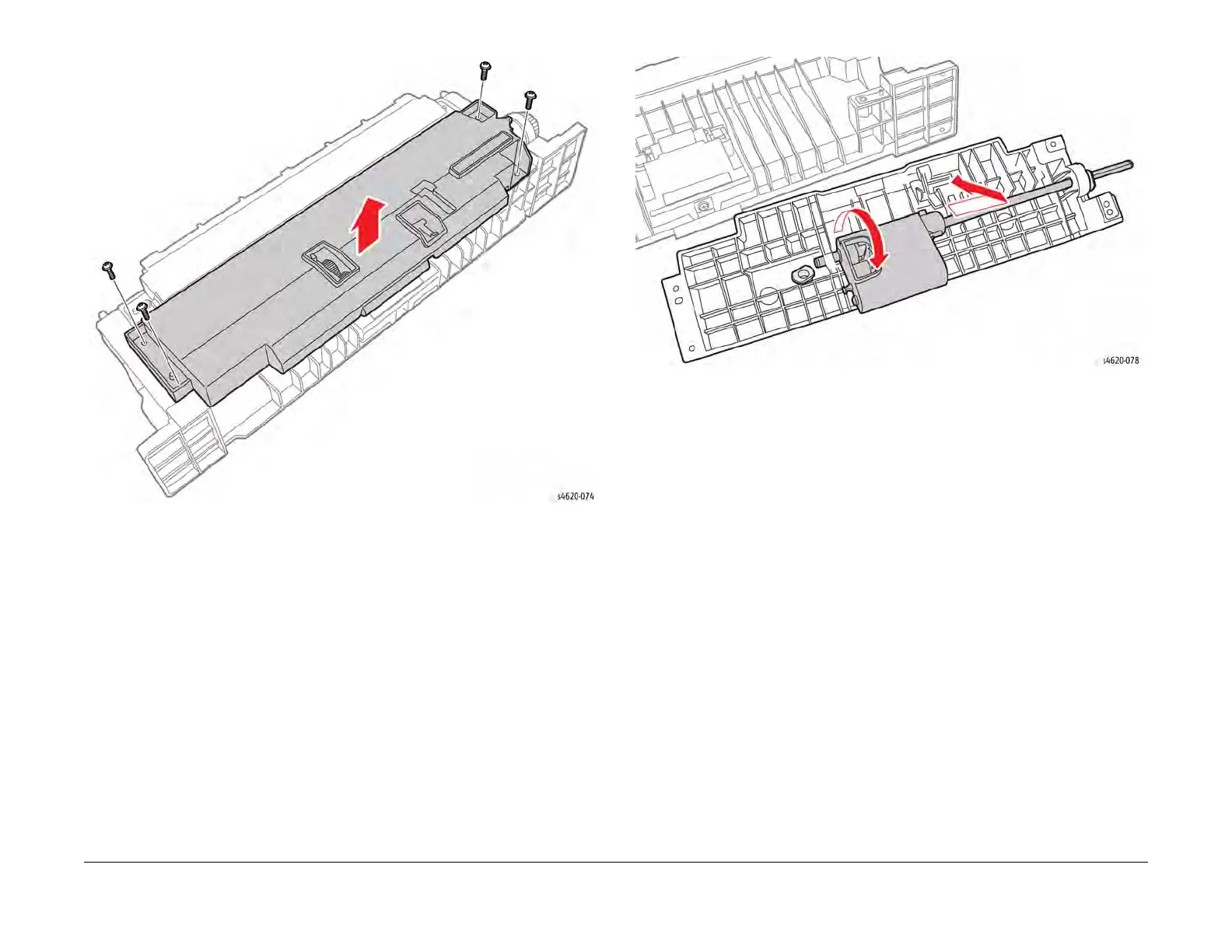

Figure 1 Remove the Feeder Assembly top screws
12. Remove the Pick Assembly from the Feeder Assembly, Figure 2.
Figure 2 Remove the Tray 1 Pick-up Assembly
Replacement
Check No Paper Sensor actuator operation and position before securing the Tray 1 Feeder
Assembly top cover, Figure 3.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
