Xerox Phaser 4600

04/2016
4-62
Phaser 4600/4620/4622 Printer Service Manual
REP 8.16
Revised
4 Repairs and Adjustments

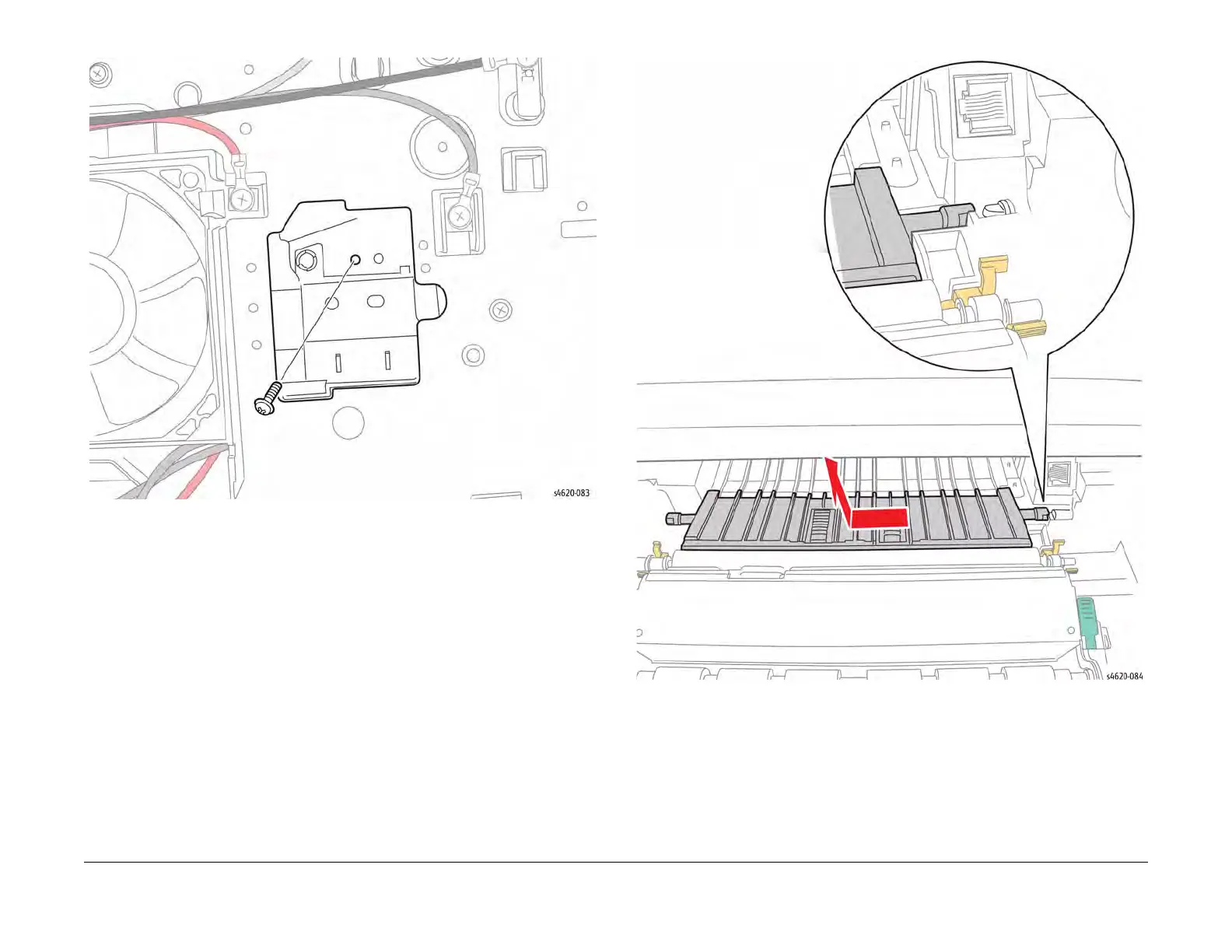

Figure 2 Remove the Shaft Frame Assembly screw
9. Slide the assembly to the left to release the shaft from the Fuser Drive Assembly.
10. Raise the assembly to remove it from the printer, Figure 3.
Figure 3 Remove the Shaft Frame Assembly
