Xerox Phaser 4600

04/2016
4-67
Phaser 4600/4620/4622 Printer Service Manual
REP 8.32
4 Repairs and Adjustments
Revised

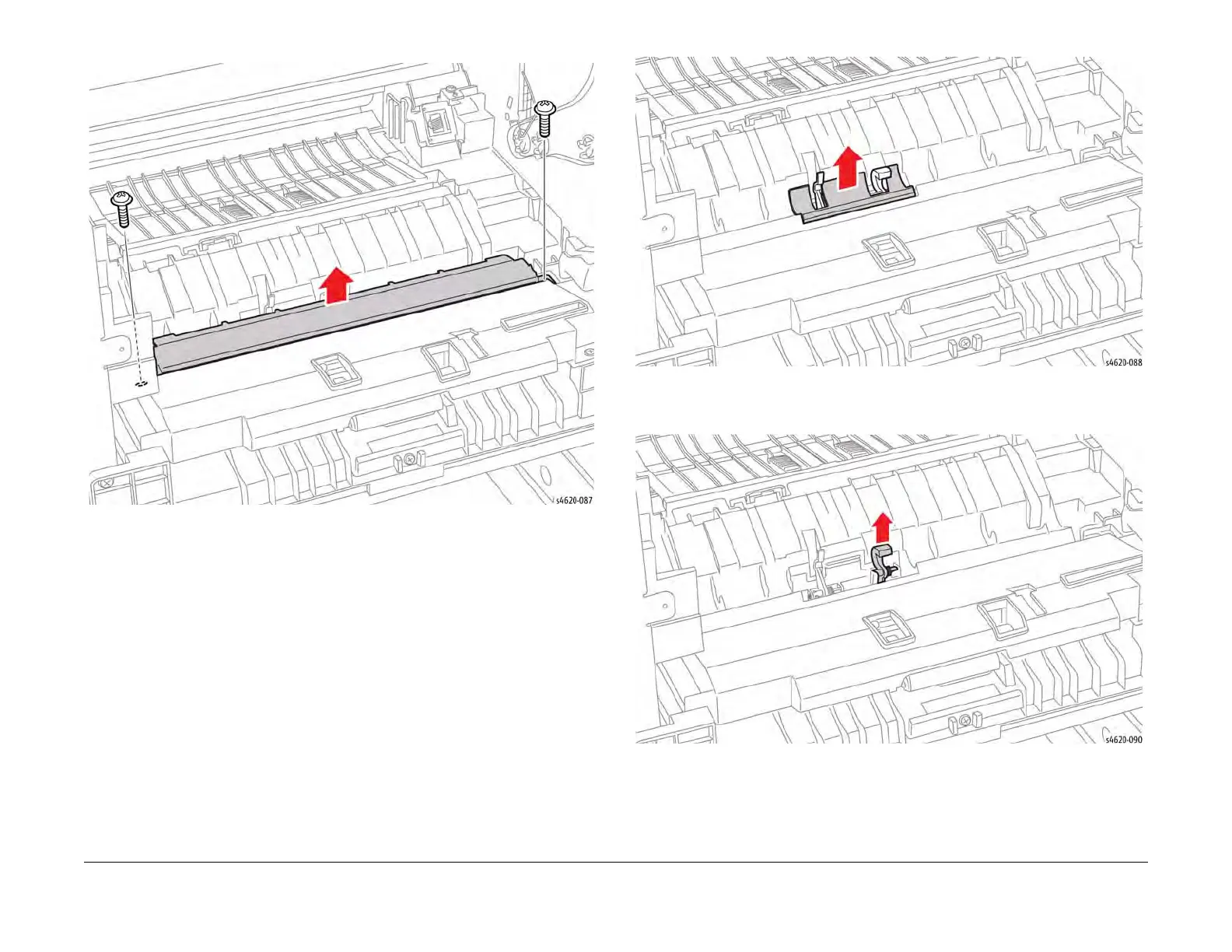

Figure 1 Remove the envelope guide screws
10. Release 2 clips that secure the actuator cap to the frame and remove the cap, Figure 2.
Figure 2 Remove the actuator cap
11. Release the actuator and spring from the tabs in the frame to remove the actuator.
Figure 3 Remove the Feed Sensor Actuator
