Xerox Phaser 4600 Service Manual

04/2016
8-8
Phaser 4600/4620/4622 Printer Service Manual
Xerographics
Revised
8 Principles of Operation
Transfer Roller
The Transfer Roller, located beneath the Drum Cartridge, is driven by direct contact with the
OPC drum. When media moves between the Transfer Roller and drum, the Transfer Roller
applies a positive charge to the rear surface of the media. The negatively charged, developed
image on the drum is attracted by the media’s positive charge and is transferred from the drum
to the media.

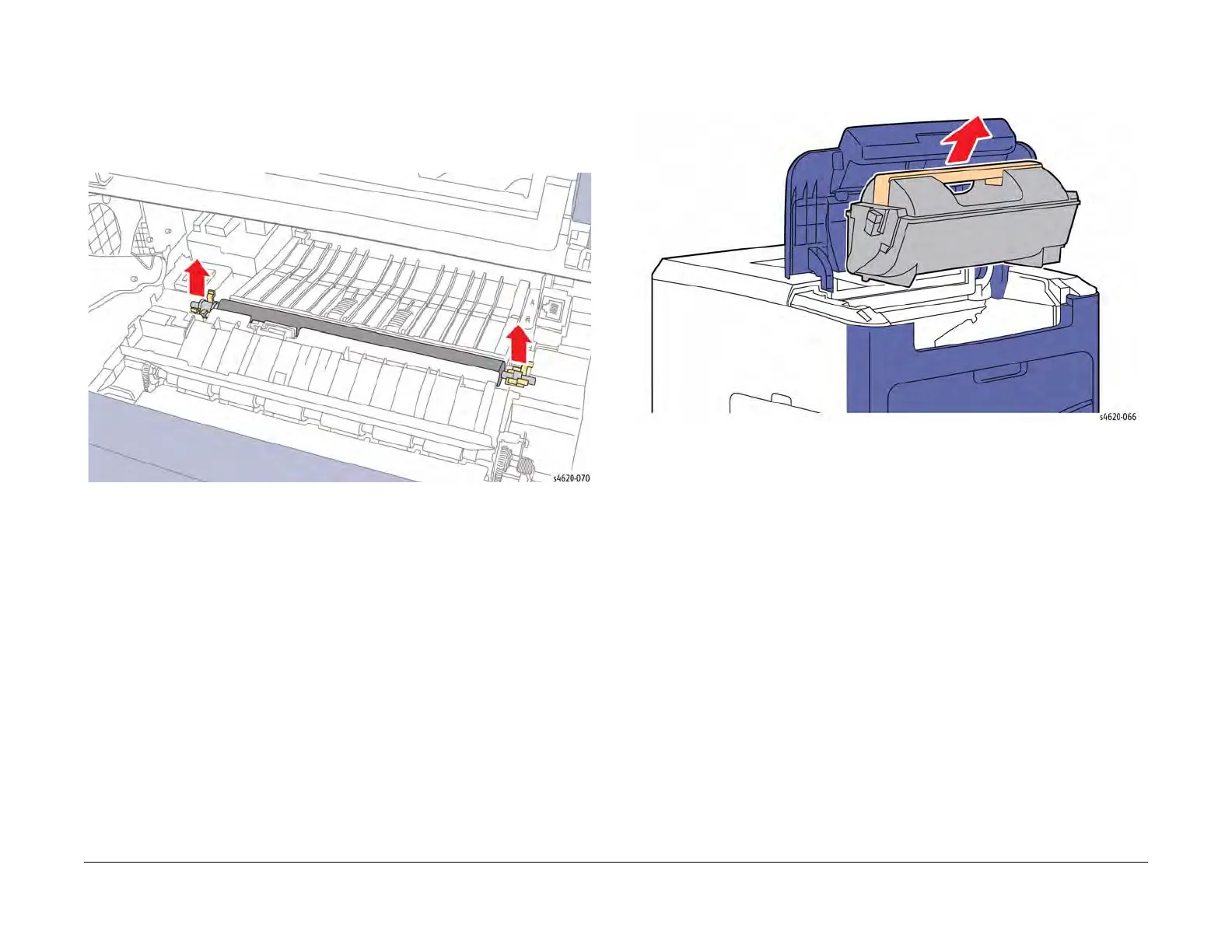

Figure 3 Transfer Roller
Toner Cartridge
The main Drive Assembly drives the Toner Cartridge to deliver toner to the Drum Cartridge.
Figure 4 Toner Cartridge
Waste Toner Cartridge
Excess toner is collected through a series of augers and deposited into the Waste Toner Car-
tridge. A new cartridge is supplied with each replacement Toner Cartridge. Replace the Waste
Toner Cartridge when you install a new Toner Cartridge.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
