Phaser 4600/4620/4622 Printer Service Manual
Major IOT Assemblies
Revised
8 Principles of Operation
Joint Board
The Joint Board provides for intermediary connections on the chassis left side.

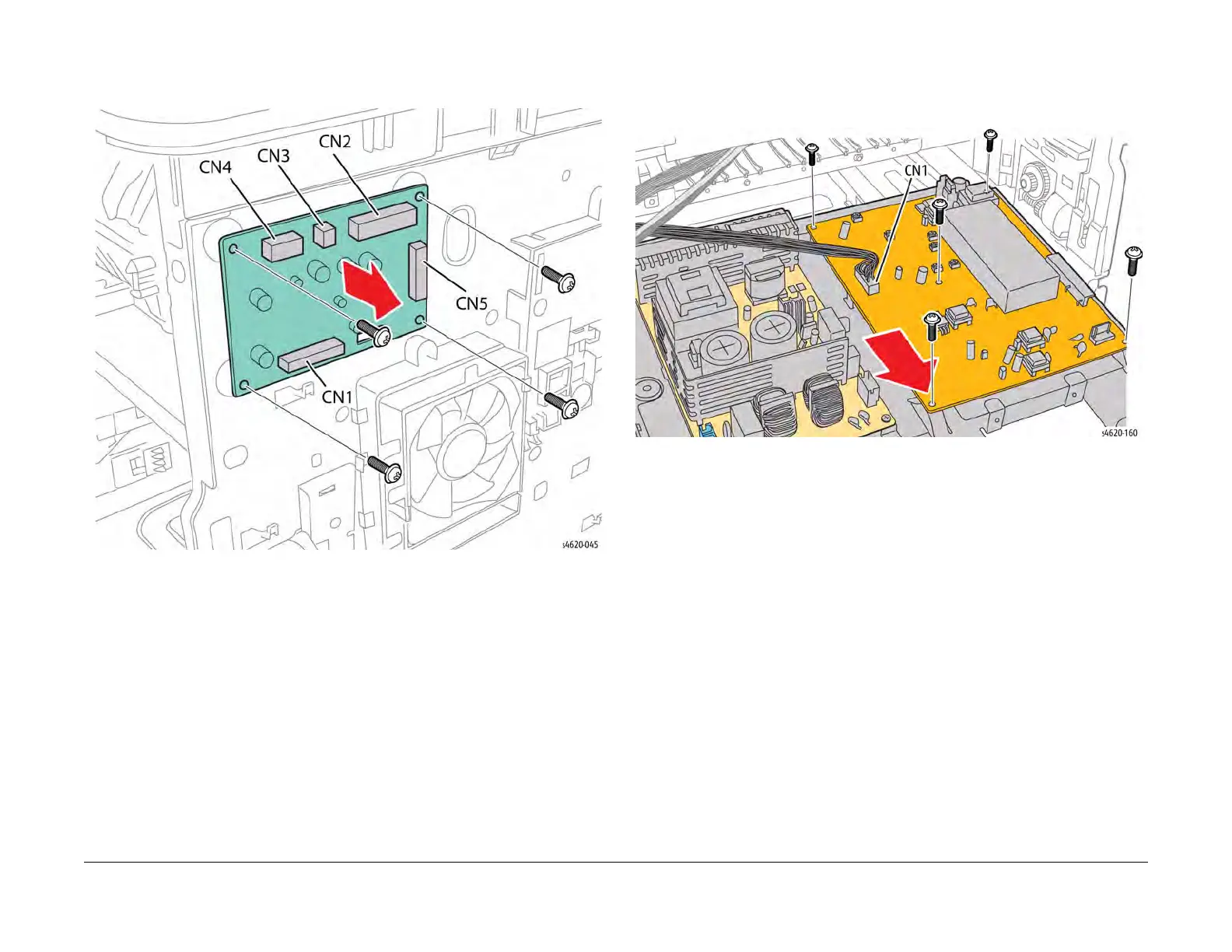

Figure 13 Interconnect Board
HVPS
Located behind the Rear Door, the High Voltage Power Supply (HVPS) provides high voltage
to the OPC drum, magnetic roller, and Transfer Roller.
Figure 14 HVPS

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
