04/2016
8-26
Phaser 4600/4620/4622 Printer Service Manual
Mailbox
Revised
8 Principles of Operation

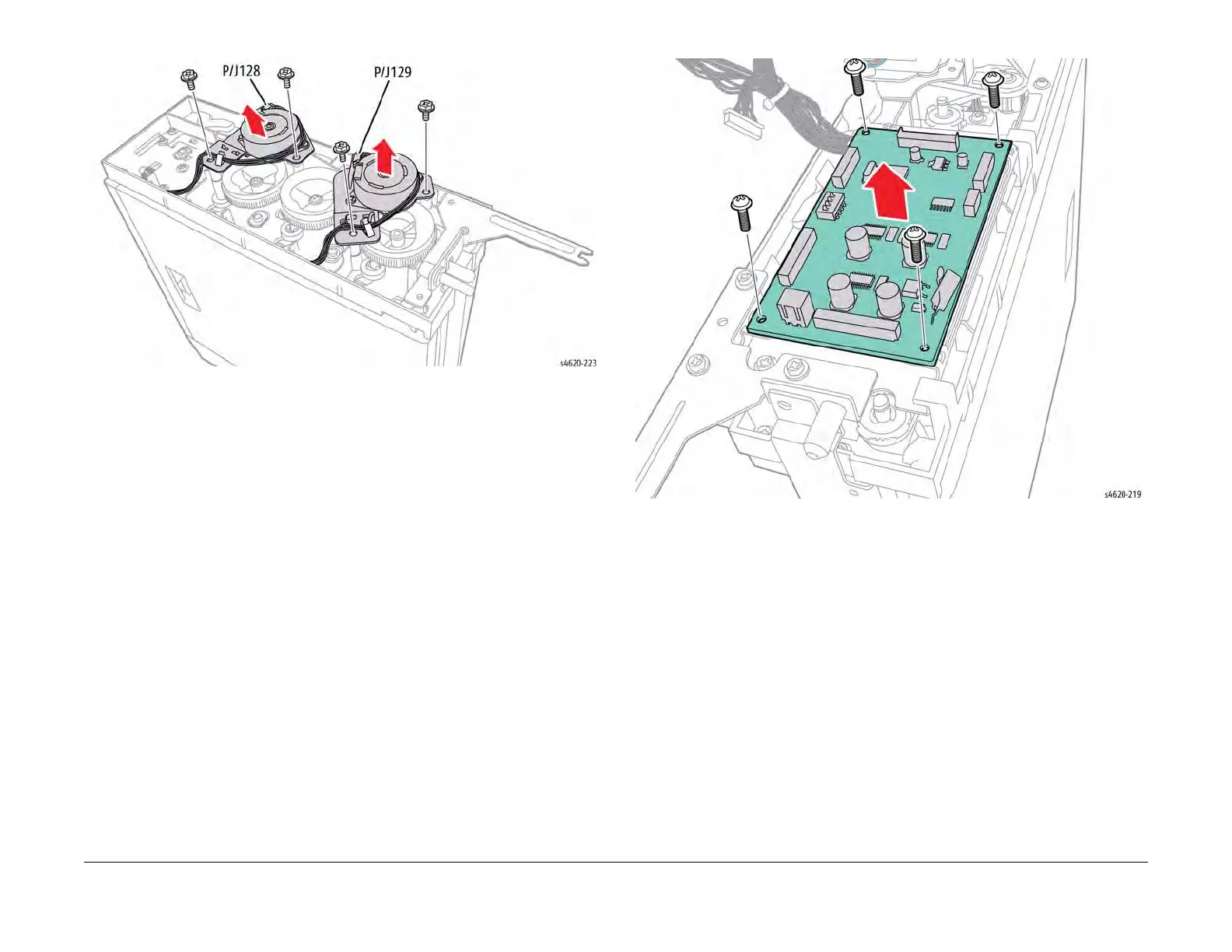

Figure 4 Mailbox Diverter Drive Assemblies
• Mailbox Control Board, Figure 5.
The Mailbox Control Board is responsible for all functions within the Mailbox. Signals from
the MCU Board reach the Mailbox Control Board through the option interface connector
located in the right cover.
Figure 5 Mailbox Control Board
To Next Page
