General Troubleshooting
Side Switch (Toner Access Door Interlock)
1. Enter the Service Diagnostic menu (page 4-5).
2. Perform the Side Switch test: Engine Diag > Sensor Test > Side
Switch.
3. Open and close the Toner Access Door while checking the information on
the Control Panel display. The Low and High values change from 0 up to
99.
4. Press the Cancel button to stop the Side Switch test.

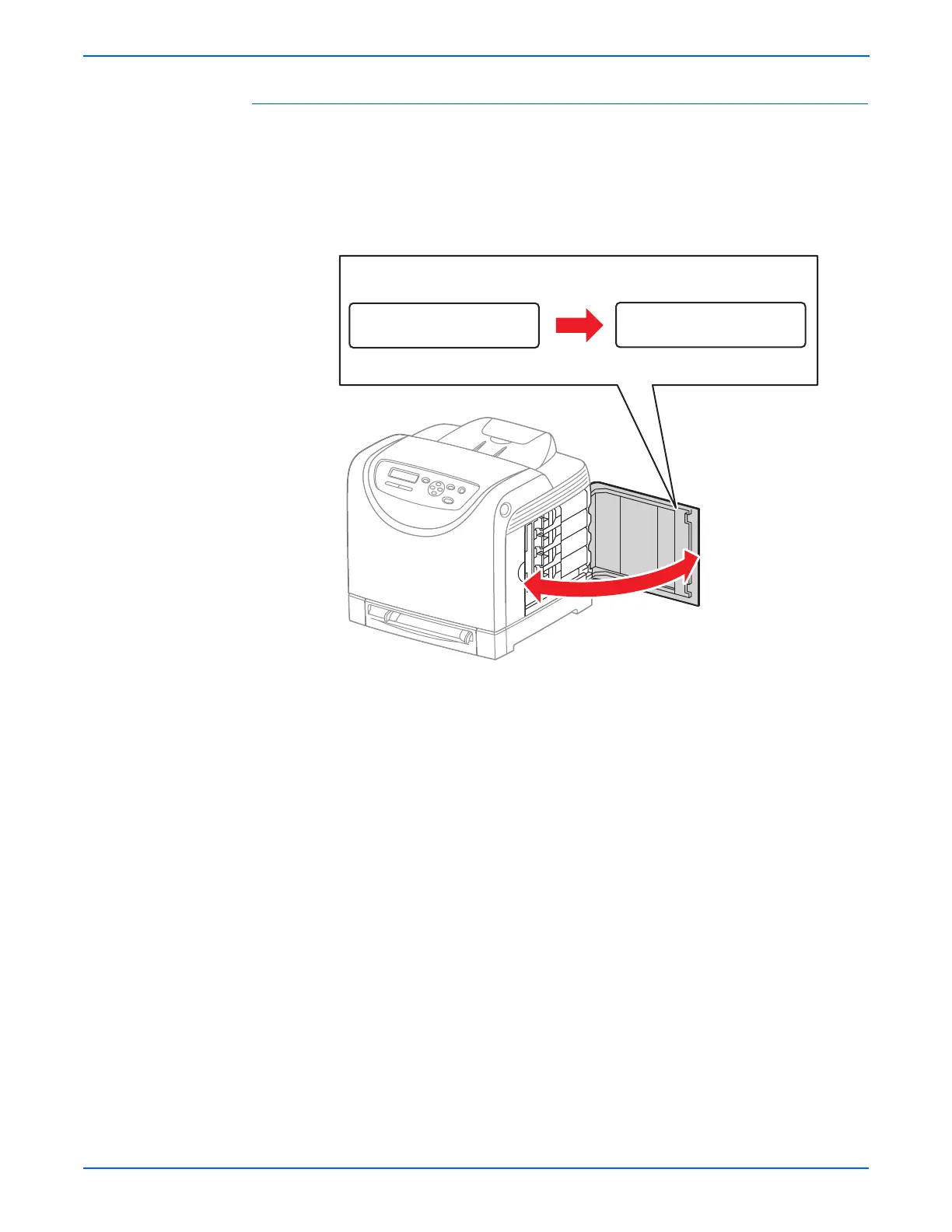

s6130-188
Control Panel
Normal
Side Sensor
L-0
Side Sensor
H-0
