Xerox Phaser 6125 Service Manual

4-32 Phaser 6125/6130 Color Laser Printer Service Manual
General Troubleshooting
Yellow/Magenta/Cyan/Black Toner Motor
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove the Toner Cartridge (page 8-10) of the color under test.
3. Open the Toner Cartridge Holder of the color under test.
4. Perform the Toner Motor test: Engine Diag > Motor Test > Yellow/
Magenta/Cyan/Black Toner Motor.
5. Verify that the Toner Motor for the chosen color is running and the gear is
rotating.
6. Press the Cancel button to stop the Toner Motor test.

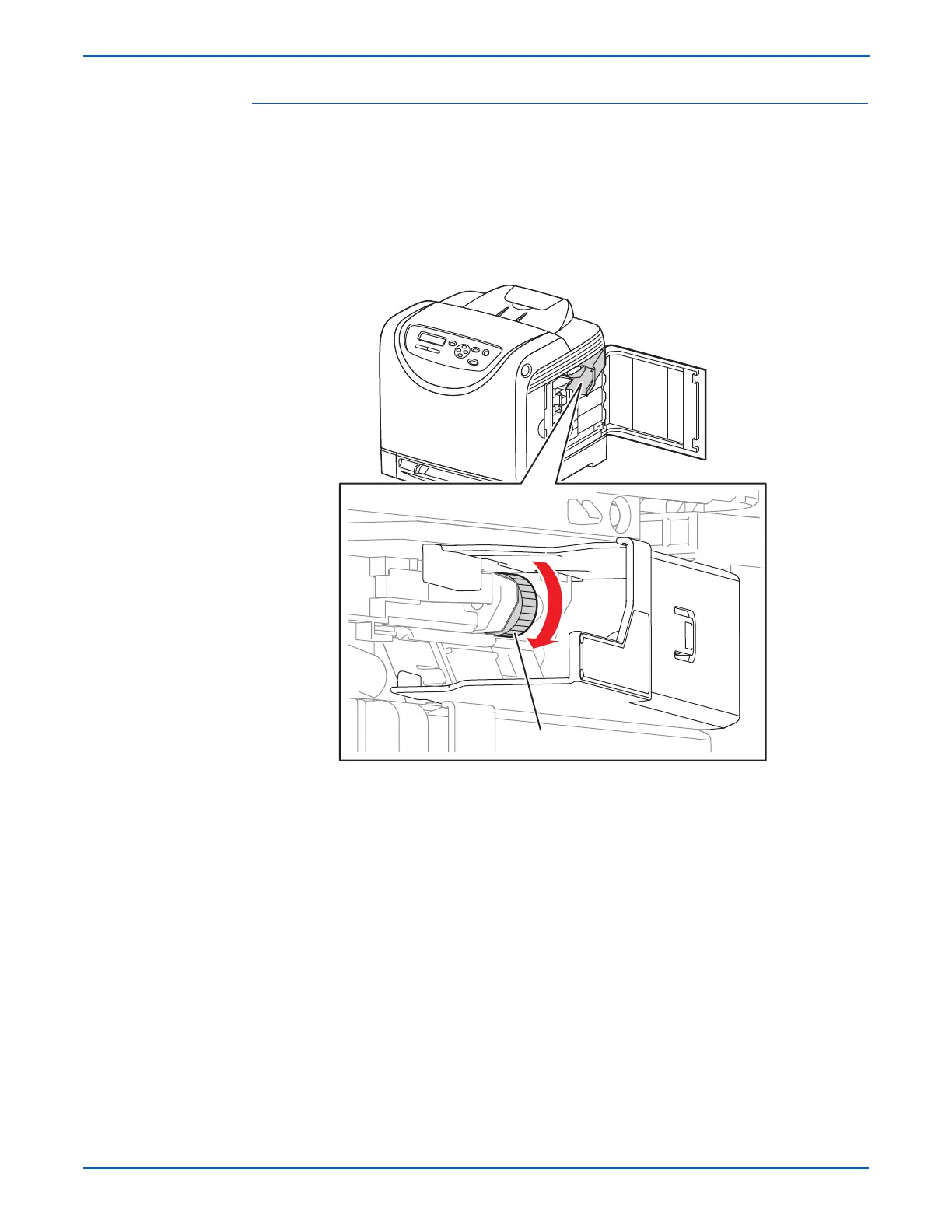

s6130-196
Gear

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
