Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 4-33
General Troubleshooting
Regi Clutch
The Regi clutch controls the drive to the Registration Roller.
Caution
When performing this procedure, remove and cover the Imaging Unit to
avoid exposure to light.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Imaging Unit (page 8-8).
4. Use a paper clip to secure the Interlock Switch.
5. Perform the Main Motor FULL2 test: Engine Diag > Motor Test > Main
Motor FULL2.
6. While the Main Motor is running, press the Up Arrow button to find Regi
Clutch. Press the OK button to run the Regi Clutch test.
Note
The Registration Rollers rotate when the Main Motor FULL2 and the
Registration Clutch tests are executed.
7. Verify that the Main Motor is running and the Registration Rollers are
rotating.
8. Press the Cancel button to stop the Regi Clutch test.
9. Press the Down Arrow button to find Main Motor FULL2.
10. Press the Cancel button to stop the Main Motor test.
11. Remove the paper clip from the Interlock Switch.
12. Press the Cancel button to stop the ADC Sensor Solenoid test.
13. Remove the paper clip from the Interlock Switch.

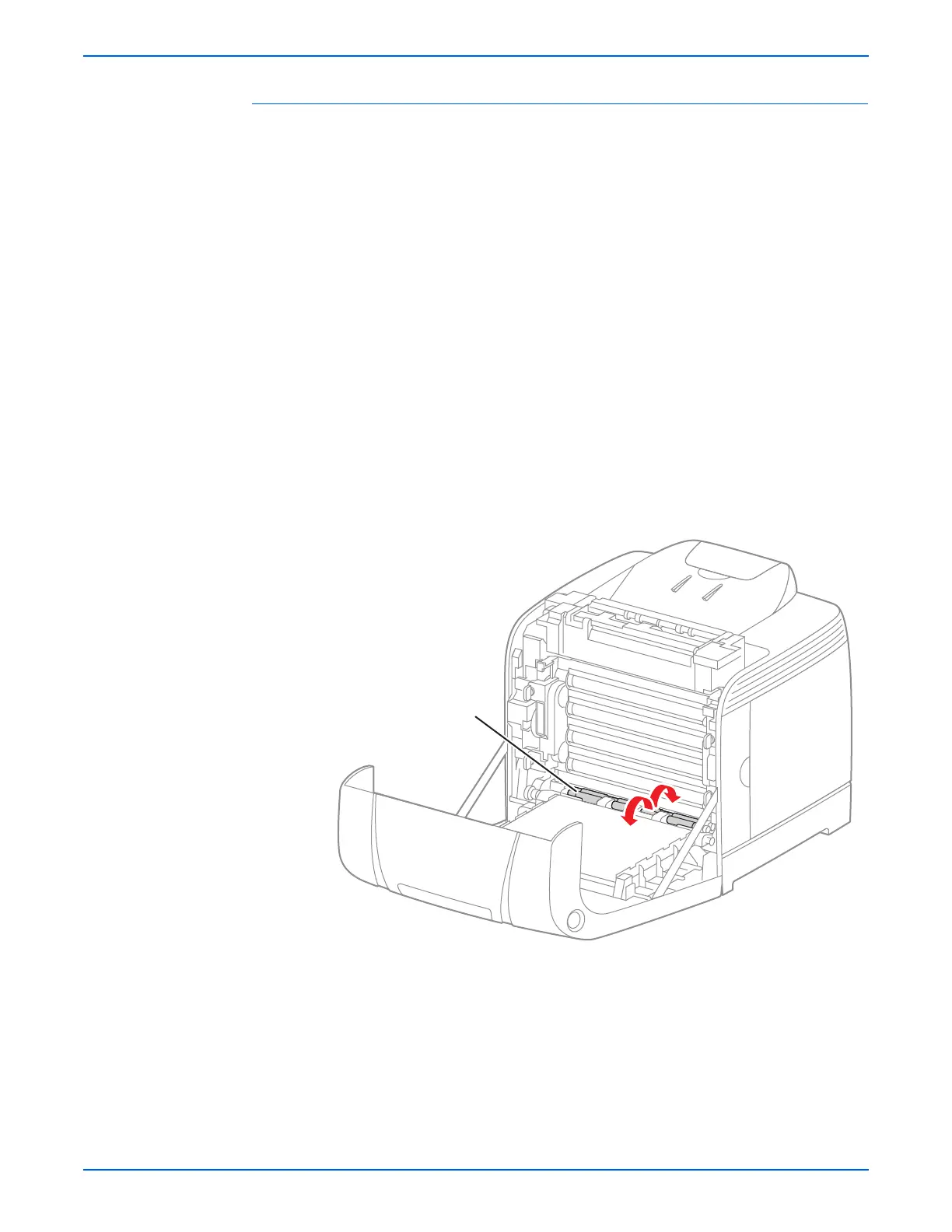

s6130-197
Registration Rollers

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
