Adjustments and Calibrations 6-3
3. At the same time, rotate the left and right idler gears until the wiper is all the way
to the bottom and the gears cannot be rotated further. Rotating the left and right
gears together ensures that the wiper stays parallel and does not pop out of the
belts.
4. Replace the left drive gear and the e-clip.

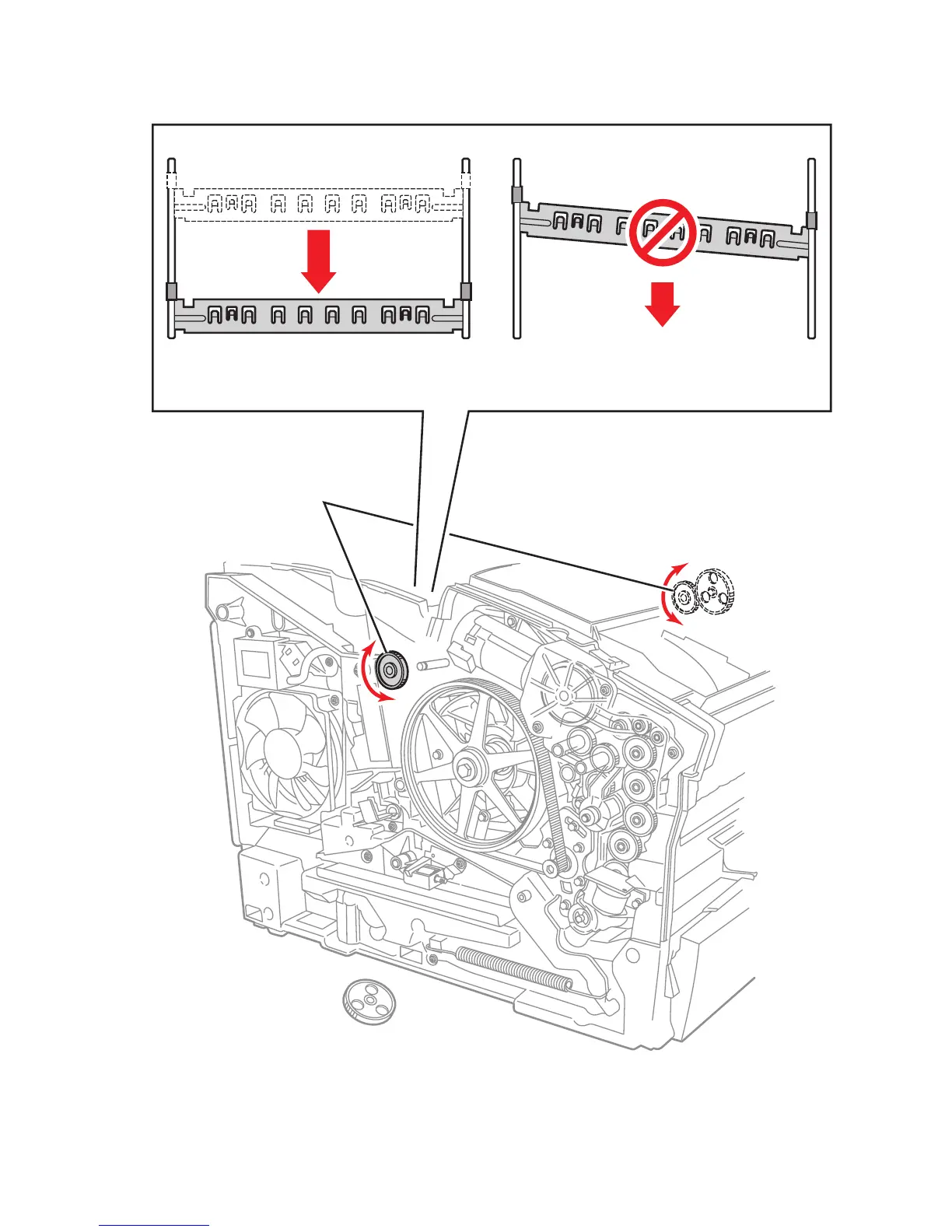

s8500-060
Wiper assembly at bottom
of travel. Wiper not skewed.
Rotate left and right idler
gears to lower wiper.
Wiper skewed when lowering.
