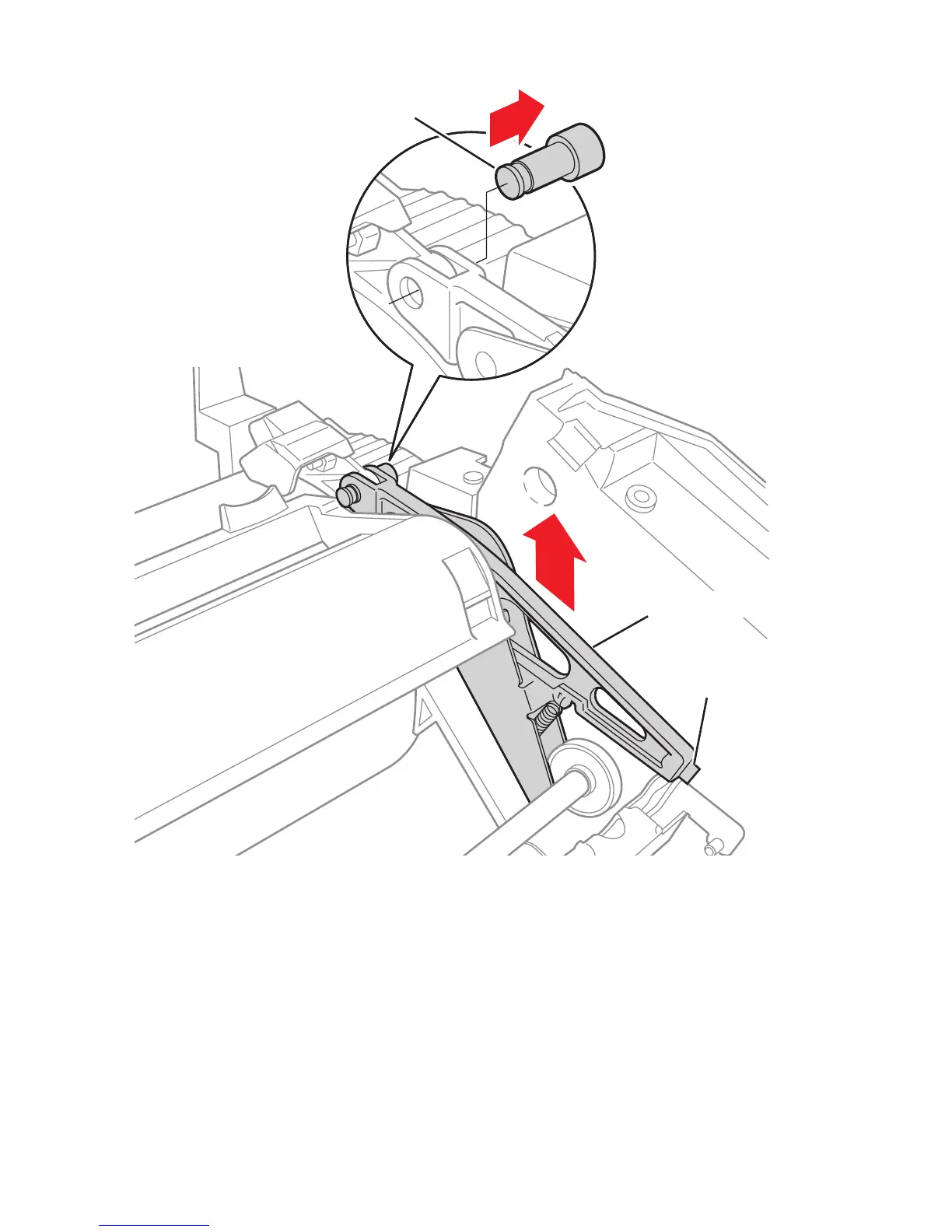

9. Remove the clevis pins (1) securing the Transfix Load Arms (2) to the chassis,
and remove the Transfix Load Arms and Transfix Roller.
10. Remove the Transfix Camshaft (see page 8-31)
s8500-088
Add Grease
Clevis Pin
Transfix Load Arm
