8-36 Phaser 8400/8500/8550 Color Printer

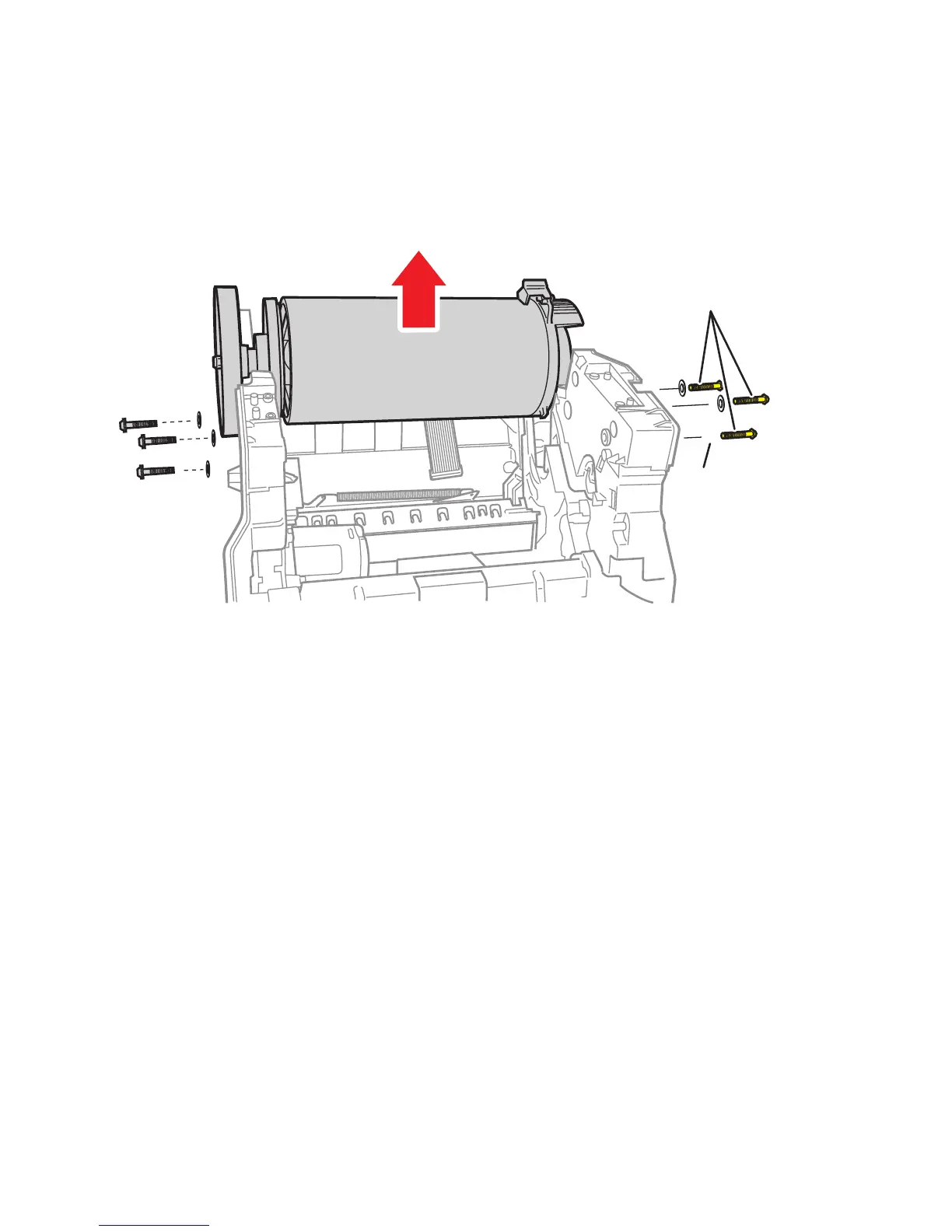

16. Remove the Drum Assembly from the chassis by lifting it straight up as shown in
the following figure.
Note
You will need to temporarily remove 3 screws of the media drive motor (PL
4.8) and pull the motor out of the way before you can lift the drum and
pulley from the chassis.
Caution
Never rest the drum on its pulley. Let the pulley hang over the edge of a
surface and place the drum on its feet.
Replacement Notes:
1. Gently seat the Drum Assembly into the chassis.
Caution
The Drum Thermal Sensor Cable is routed through the Exit Module. Use
care when reinstalling to avoid damaging the sensor.
Note
To help seat the drum properly, the following steps 2-6 provide an explicit
order of placement for installing the screws to secure the drum assembly to
the chassis.
s8500-096
No Washer
Yellow Left-Hand
Threaded Screws
