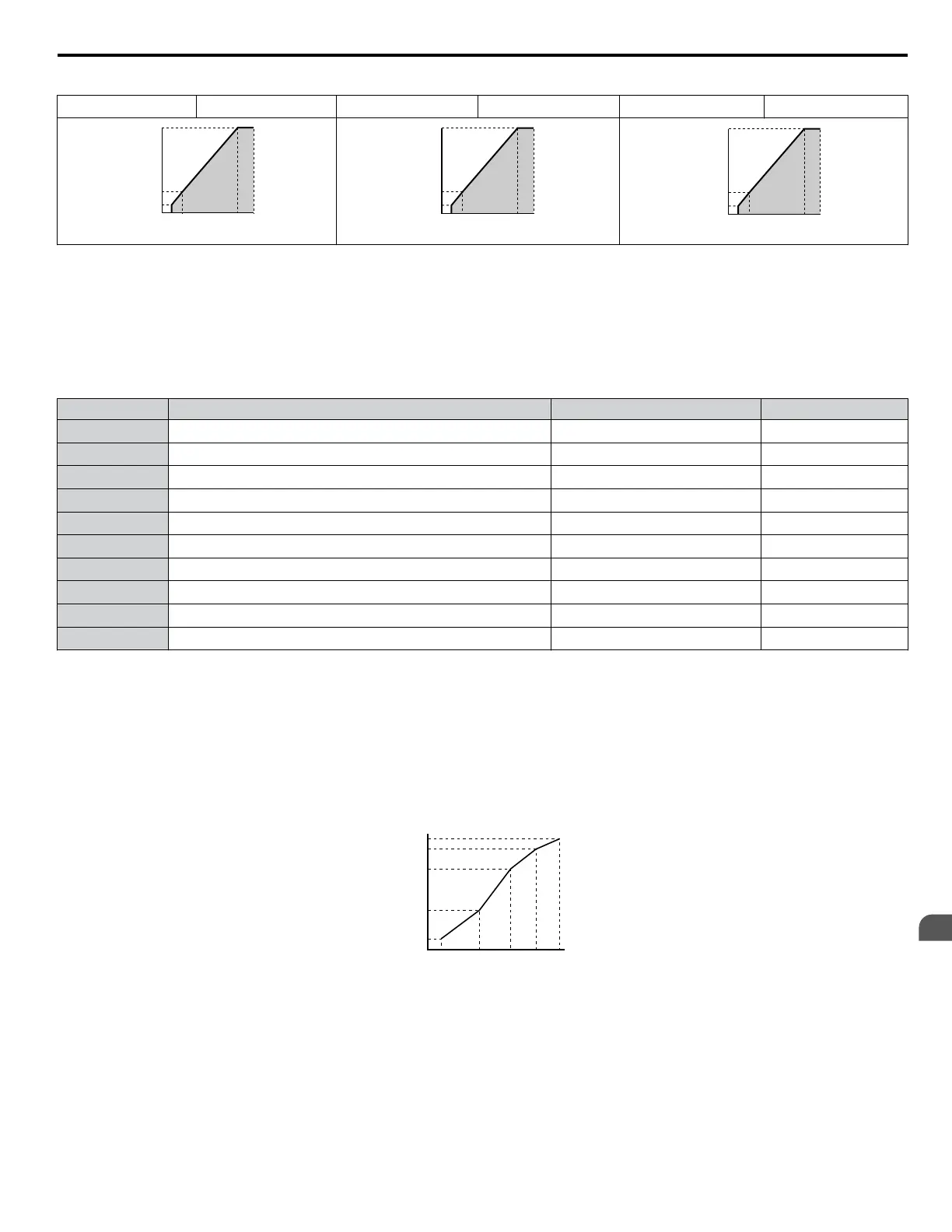

Table 4.25 Constant Output, Settings C to E
Setting = C 90 Hz Setting = D 120 Hz Setting = E 180 Hz
0
6
12
200
1.5 3 9060
Voltage (V)
Frequency (Hz)
0
6
12
200
1.5 3 12060
Voltage (V)
Frequency (Hz)
0
6
12
200
1.5 3 18060
Voltage (V)
Frequency (Hz)
Setting a Custom V/f Pattern (Setting F: Default)
Setting parameter E1-03 to F allows the user to set up a custom V/f pattern by changing parameters E1-04 to E1-13.
n
V/f Pattern Settings E1-04 to E1-13
Set E1-03 ≤ E to monitor, but not change, the V/f pattern using parameters E1-04 to E1-13. To create a new V/f pattern, set
E1-03 to F. Refer to
V/f Pattern on page 151 for an example custom V/f pattern.
Note:
Certain E1-oo parameters might not be visible depending on the control mode. Refer to Parameter List on page 249 for details.
No. Parameter Name Setting Range Default
E1-04 Maximum Output Frequency
40.0 to 400.0 Hz
<1> <2> <3>
E1-05 Maximum Voltage
0.0 to 255.0 V
<4> <2>
E1-06 Base Frequency 0.0 to [E1-04]
<2> <3>
E1-07 Middle Output Frequency 0.0 to [E1-04]
<2>
E1-08 Middle Output Frequency Voltage
0.0 to 255.0 V
<4> <2>
E1-09 Minimum Output Frequency
0.0 to [E1-04]
<1> <2> <3>
E1-10 Minimum Output Frequency Voltage
0.0 to 255.0 V
<4> <2>
E1-11 Middle Output Frequency 2 0.0 to [E1-04]
0.0 Hz
<6>
E1-12 Middle Output Frequency Voltage 2
0.0 to 255.0 V
<4>
0.0 V
<5> <6>
E1-13 Base Voltage
0.0 to 255.0 V
<4>
0.0 V
<5> <7>
<1> Default
setting is determined by E5-01 in OLV/PM. When E5-01 is set to FFFF the setting range for E1-04 and E1-06 is 10.0 to 400.0 Hz and the
setting range for E1-09 is 0.0 to 400.0 Hz.
<2> Default setting is determined by the control method, drive model, and drive duty rating.
<3> When using PM motors, the default setting is determined by the motor code set to E5-01.
<4> Values shown are specific to 200 V class drives. Double the value for 400 V class drives. Multiply the value by 2.875 for 600 V class drives.
<5> The drive changes these settings when Auto-Tuning is performed (Rotational Auto-Tuning, Stationary Auto-Tuning 1, 2).
<6> Parameter ignored when E1-11 and E1-12 are set to 0.0.
<7> E1-13 and E1-05 are set to the same value when Auto-Tuning is performed.
Output Voltage (V)
Frequency (Hz)
E1-05
E1-12
E1-13
E1-08
E1-10
E1-09 E1-07 E1-06 E1-11 E1-04
Figure 4.24 V/f Pattern
Note: 1. The following condition must be true when setting up the V/f pattern: E1-09
≤ E1-07 < E1-06 ≤ E1-11 ≤ E1-04
2. To make the V/f pattern a straight line below E1-06, set E1-09 equal to E1-07. In this case the E1-08 setting is disregarded.
3. E1-03 is unaffected when the drive is initialized, but E1-04 through E1-13 return to their default values.
4. Only use E1-11, E1-12, and E1-13 to fine-tune the V/f pattern in the constant output range. These parameters rarely need to be changed.
n
E2-01: Motor Rated Current
Provides motor control, protects the motor, and calculates torque limits. Set E2-01 to the full load amps (FLA) stamped on
the motor nameplate. If Auto-Tuning completes successfully, the value entered to T1-04 will automatically be saved to E2-01.
4.6 Basic Drive Setup Adjustments
YASKAWA ELECTRIC TOEP C710616 41G YASKAWA AC Drive - A1000 Quick Start Guide
151
4
Start-Up Programming & Operation
