YASKAWA NX100 Instructions

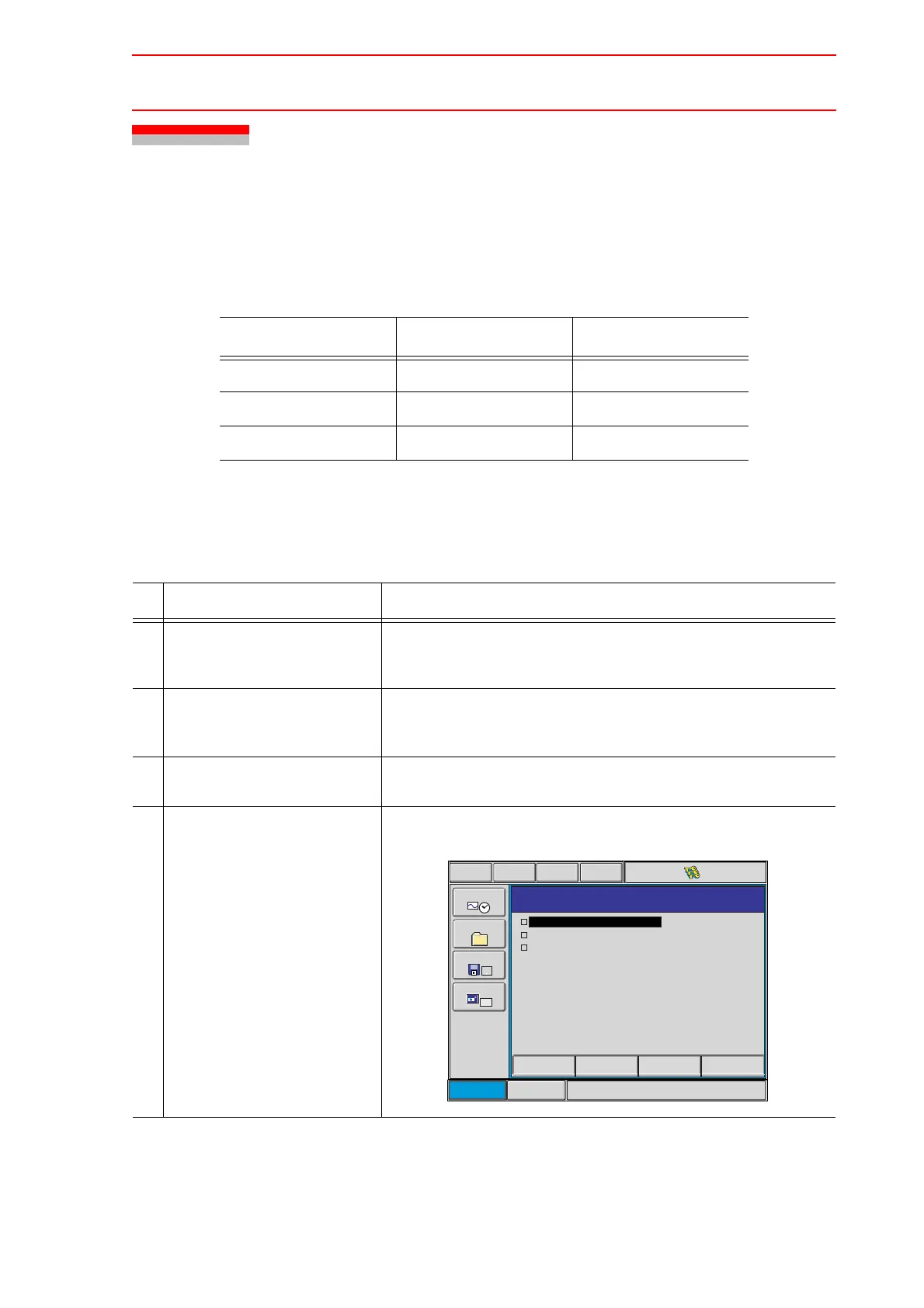

9.2 Backup by CMOS.BIN
9-4
9.2 Backup by CMOS.BIN
Perform the backup by CMOS.BIN in the maintenance mode.
The chart below shows the availability of CMOS save/CMOS load in each security mode in
the maintenance mode.
9.2.1 CMOS.BIN Save
Follow the procedures below to save CMOS.BIN.
O: available, X: not available
Security CMOS Save CMOS Load
Operation Mode X X
Editing Mode O X
Management Mode O O
Operation Explanation
1 Turn ON the NX100 power
supply while pressing [MAIN
MENU].
2 Insert a CompactFlash into
the CompactFlash slot on the
programming pendant.
3 Select {TOOL} under the main
menu.
The sub menu appears.
4 Select {CompactFlash}. The CompactFlash display appears.
The items marked with "
" cannot be selected.
Short Cut
Main Menu
Maintenance mode
TOOL
SYSTEM INFO
FILE
CF
CompactFlash
CMOS SAVE
CMOS LOAD
SYSTEM RESTORE
Aa
DISPLAY SETUP
