Coating Treatment

(1) HumiSeal coating treatment

Apply HumiSeal coating to the printed circuit board assembly.

Do not apply HumiSeal coating to the following parts: connector, gold-plated contact

area, relay part, RJC device, and in the vicinity of the push switch/LED lamp.

(2) Apply terminal coating to the gold-plated contact area on the printed circuit board.

Notes

▪ Therearetwotreatmentsasdescribedabove,butwedonotguaranteetheireffectiveness.

We do not supply any test data on these treatments.

▪ Donotapplyanytreatmenttothescrewterminalareaonthebacksideoftheinstrument.

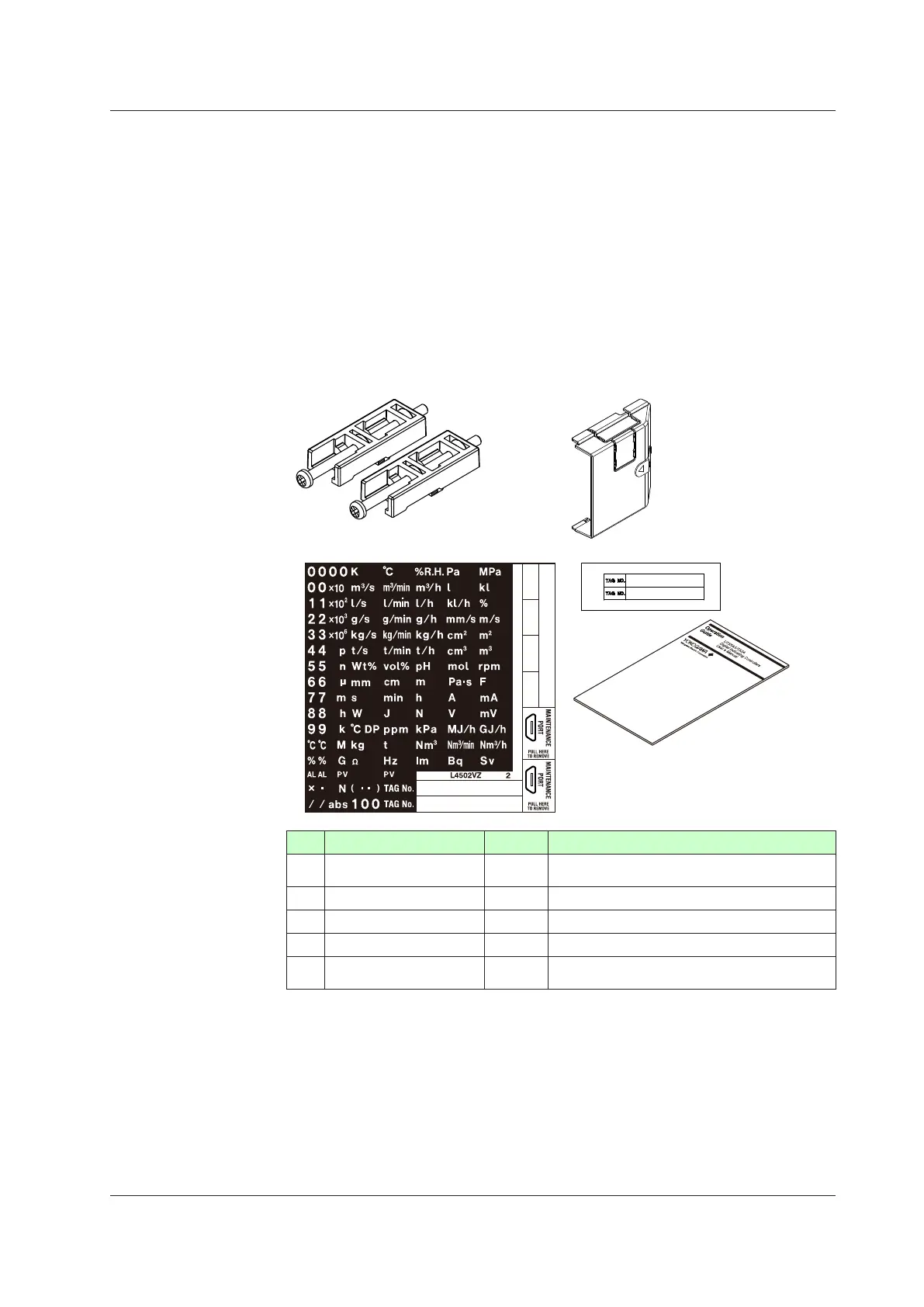

Accessories

The product is provided with the following accessories according to the model and suffix

codes. Check that none of them are missing or damaged.

1 2

No. Product Name Quantity Remark

1 Brackets 2

Part number: L4502TP (For fixing the upper and

lower parts)

2 Terminal cover 1 ForUP55A:L4502XP

3 Unit label 1 Part number: L4502VZ

4 Tag label 1 Part number: L4502VE (Only when ordered.)

5 Operation Guide 1

Single-loopcontrol(A3size,x7)(Standardmodel

only)

How to use the unit label

• Affixing the unit label

Affix the unit label to the front panel. If necessary, combine with unit prefixes. Affix it so

that the LCD area is not blocked.

• Maintenance port seals

Maintenance port seals (two spares) are available. Use them if the seal affixed to the

UTAdvanced controller loses its adhesiveness.

• TAG No. labels

TAG No. labels (two pieces) are available. Use them if necessary.
