YOKOGAWA UP55A User Manual

9-4
IM 05P02C41-01EN

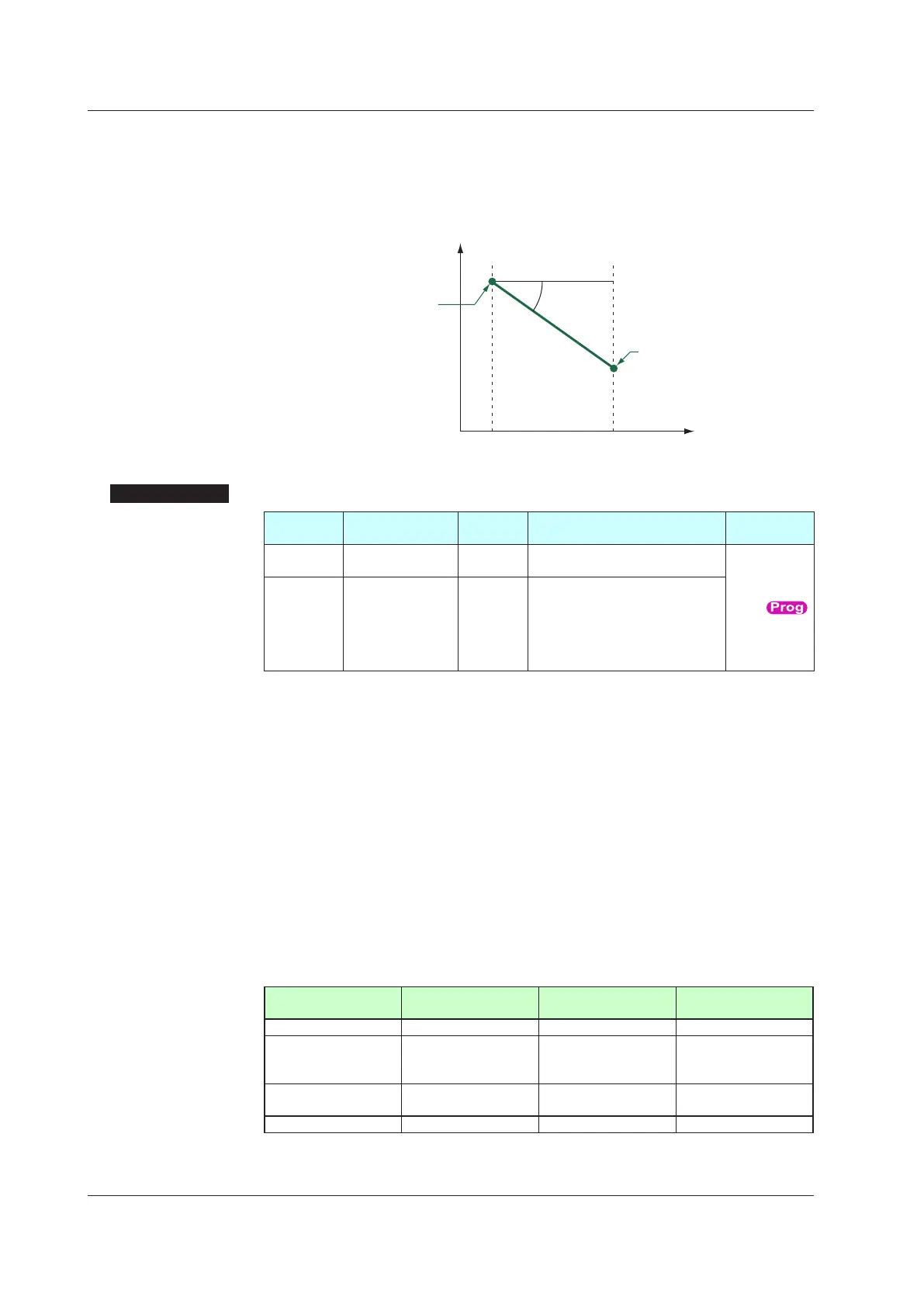

Segmenttimeduringramp-downoperations
When the target setpoint of the current segment is lower than that of the last segment,
ramp-down operations are performed for the current segment.
During ramp-down, the amount of change (between target setpoints) per hour or per
minute is set with the ramp time parameter TM.RM.
TM.RT
n = 1 to 99
PV
Time
Target setpoint of last segment
(Start target setpoint if
program just started)
Segment-n
operation
Final target setpoint：TSP
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
TSP
Final target
setpoint
EASY
0.0 to 100.0% of PV input range
(EU) (Setting range: P.RL to P.RH)
PROG
TM.RT
Segment ramp-
rate setting
EASY
-: Unregistered
Ramp: 0.0 to 100.0% of PV input
range span (EUS) / 1 hour or 1
minute
Soak: 0.00 to 999.59 (“hour.
minute” or “minute.second”)
Note 1: When the program pattern-2 retransmission is selected (PT2.G=ON), the second loop is
also displayed for the parameter SSP. (LP2 lamp is lit.)
If it is set to 0.0% of the input range span, or the segment time 0.00, the program moves
to the next segment after one control period.
Use the parameter TMU to set the time unit. (Common in the instrument.)
When setting the program pattern via communication, set the time in minutes when the
time unit is set to hour.minute and set the time in seconds when the time unit is set to
minute.second.
When program pattern-2 retransmission is selected, priority is given to the conditions for
the program pattern for control.
When the control program pattern is set to ramp and the retransmission program pattern
is set to soak, the program pattern is set by the ramp. When the control program pattern
is set to soak and the retransmission program pattern is set to ramp, the program pattern
is set by the time.
Segmentforcontrol Segmentfor
retransmission
Segmenttime(TM.RT) TSPactionfor
retransmission
Ramp Ramp Ramp setting -
Ramp Soak Ramp setting Soak action during the
time to reach the control
TSP
Soak Ramp Time setting Ramp action according
to the time setting
Soak Soak Time setting -
9.1SettingtheSettingMethodofProgramPattern
