Program Pattern Functions
9
PV
TSP
TSP
TSP
AL3 contact
output
Controller No.1
Controller No.2
Controller No.3
DI3 contact
input
Off state for a second
Seg.1 Seg.2
Segment transition is
inhibited for all the
controllers.
Segment transition to the next
segment takes place when each
DI3 of all the controllers goes OFF.
Forcibly wait
Forcibly wait
PV
PV
Because AL3 of controller 1
is ON, the wait state is
forcibly enabled.
Because AL3 of controller 1
is ON, the wait state is
forcibly enabled.
Time
Time
Time
Upper-side wait zone
Lower-side wait zone
Upper-side wait zone
Lower-side wait zone
Upper-side wait zone
Lower-side wait zone

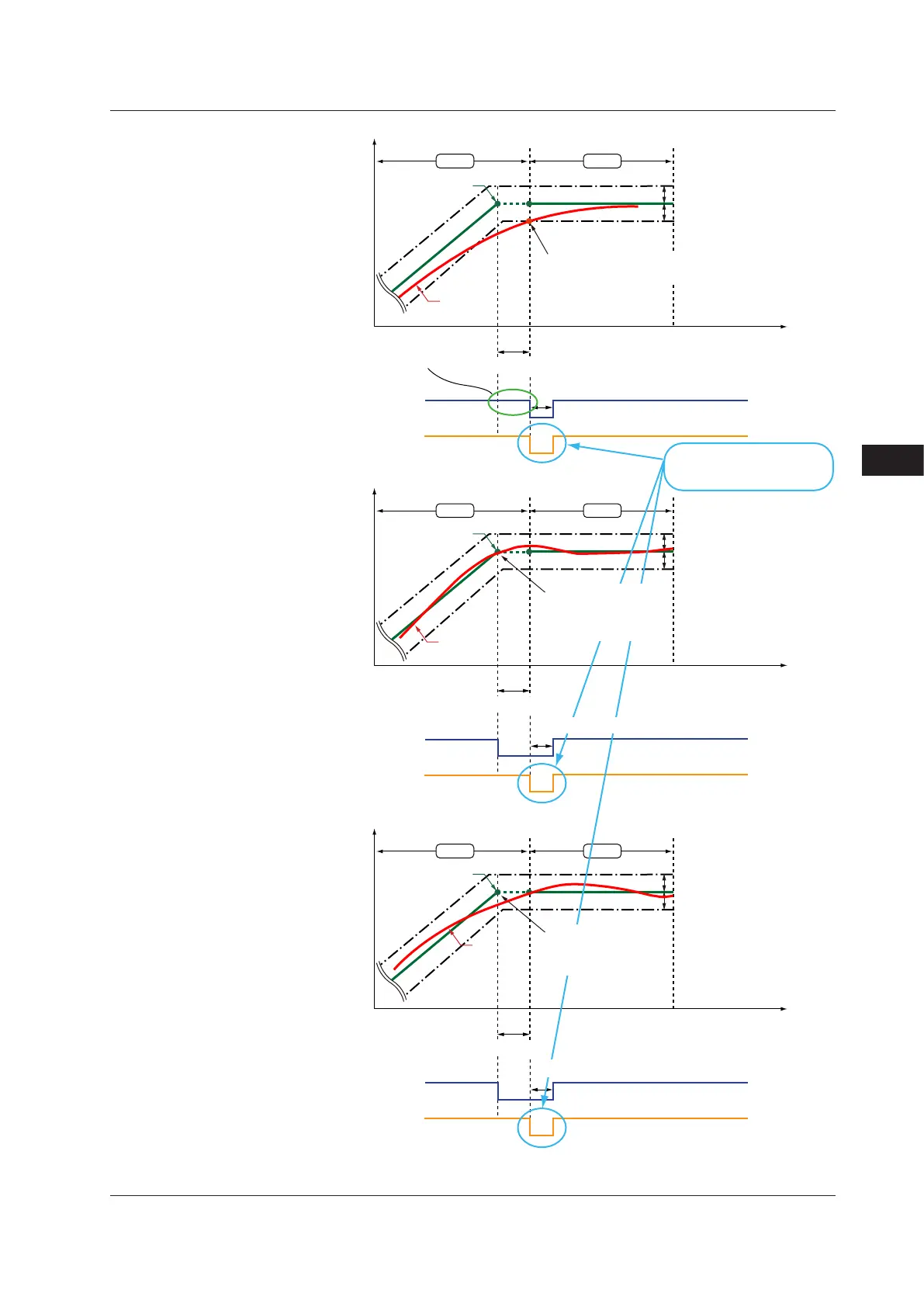

Wait operation
Seg.: Segment
TSP: Final target setpoint
Seg.: Segment
TSP: Final target setpoint
Seg.: Segment
TSP: Final target setpoint
The moment that the PV attains the wait zone,
the program advances to the next segment.
Setpoint
Setpoint
Setpoint
On
Off
On
Off
AL3 contact
output
DI3 contact
input
On
Off
On
Off
Seg.1 Seg.2
Seg.1 Seg.2
Off state for a second
Off state for a second
9.14SynchronizedProgramPatternOperation
