YOKOGAWA UP55A User Manual

17-19
IM 05P02C41-01EN
Installation and Wiring
17

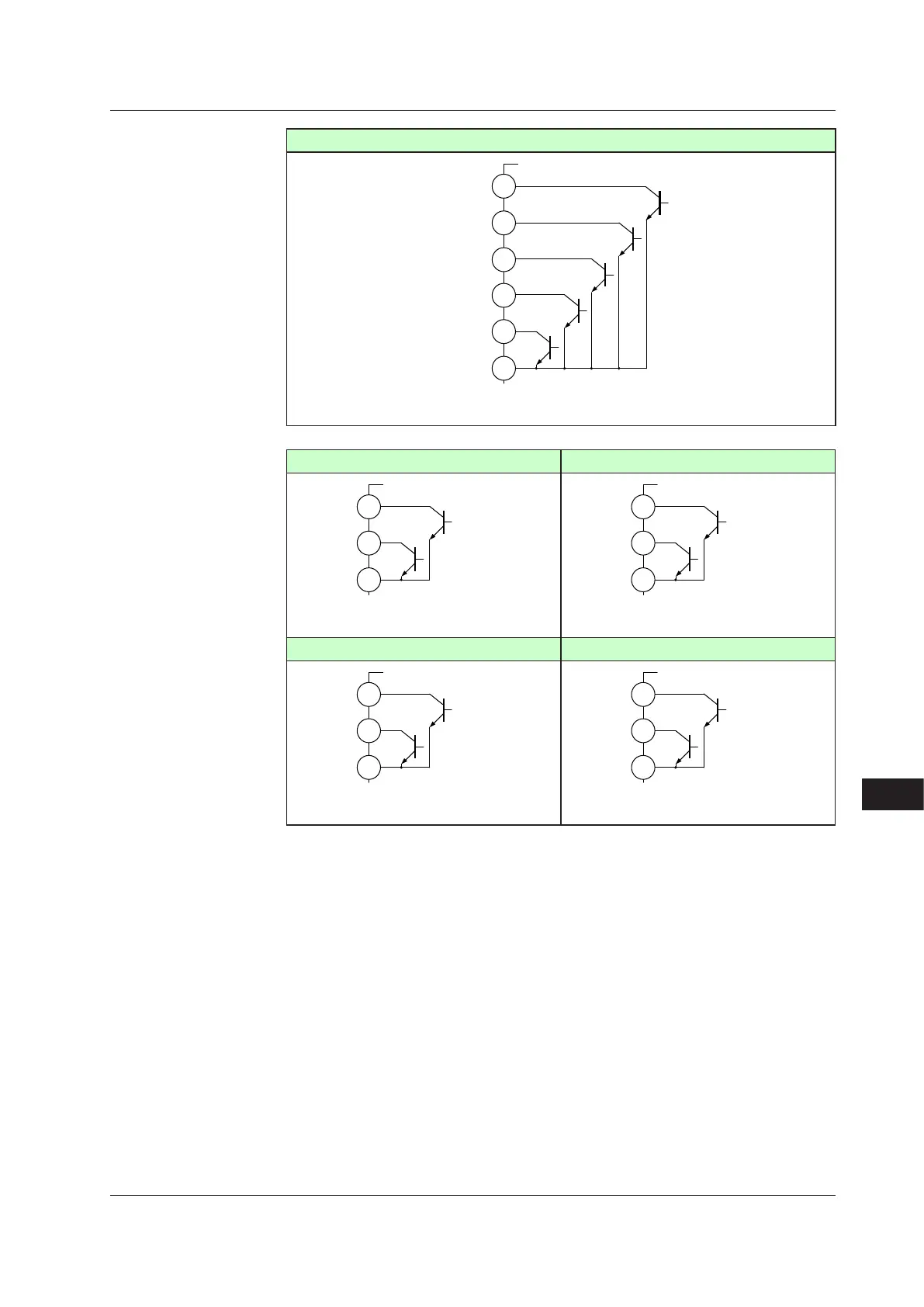

Optionalsufxcode(forStandardmodel):/Y4
Transistor contact rating: 24 V DC, 50 mA
DO42
DO41
DO43
DO44
DO45
COM
501
502
503
504
505
506
DO
Optionalsufxcode(forDetailedmodel):/W1 Optionalsufxcode(forDetailedmodel):/W2
Transistor contact rating: 24 V DC, 50 mA
DO12
DO11
COM
304
305
306
DO
Transistor contact rating: 24 V DC, 50 mA
DO22
DO21
COM
310
311
312
DO
Optionalsufxcode(forDetailedmodel):/W3 Optionalsufxcode(forDetailedmodel):/W4
Transistor contact rating: 24 V DC, 50 mA
DO32
DO31
COM
410
411
412
DO
Transistor contact rating: 24 V DC, 50 mA
DO42
DO41
COM
504
505
506
DO
The function is assigned to contact outputs for each control mode and control type.
► Initial value of Contact output function: 8.1 Setting Control Mode (CTLM)
► Contactoutputfunctionregistration:12.2SettingContactOutputFunction
17.4Wiring
