4-2
IM 05P02C41-01EN
The display pattern of the UP55A is as follows; the Menu Display and Parameter Setting
Display.
For the Operation Display, see Chapter 6, “Monitoring and Control of Regular
Operations.”

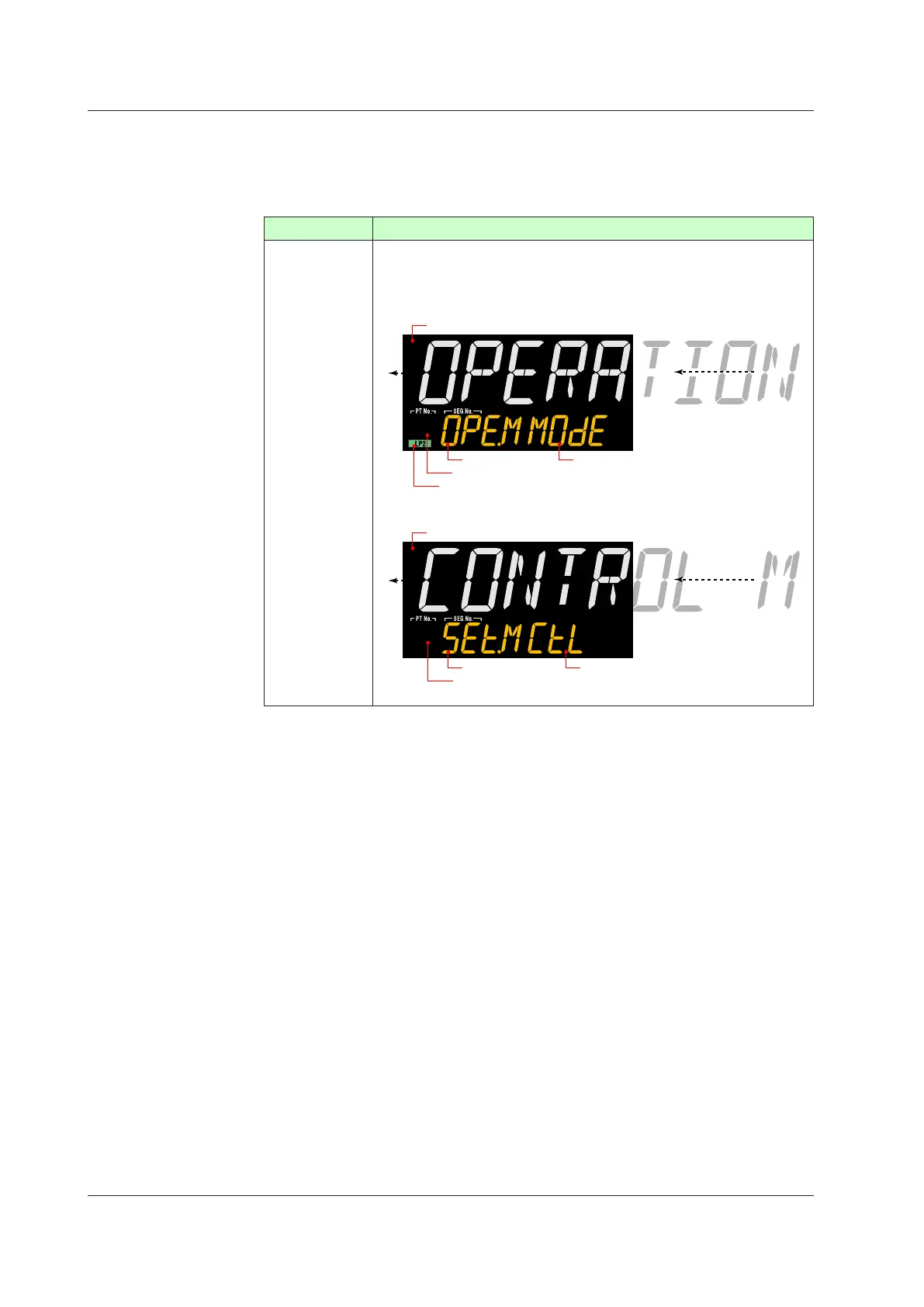

Display Description
MenuDisplay
The Menu Display is segmented by the function and optional terminal position.
The scrolling guide for the menu is displayed on PV display. The guide display
can be turned on/off with the MODE key.
Menu Display of Operation Parameter
The scrolling guide for the menu is displayed.
Group number or Terminal area is displayed.
Lit while Loop-2 parameter is displayed.
OPE.M is displayed.
Menu symbol is displayed.
Menu Display of Setup Parameter
The scrolling guide for the menu is displayed.
Group number or Terminal area is displayed.
SET.M is displayed.
Menu symbol is displayed.
4.1OverviewofDisplaySwitchandOperationKeys
