4-3
IM 05P02C41-01EN
Basic Operation
4
Display Description
Parameter
SettingDisplay
The following is the Display for displaying and setting a parameter.
The parameters have three types of display levels; Easy setting mode,
Standard setting mode, and Professional setting mode. The parameters to be
displayed can be limited according to the setting of the parameter display level.
The scrolling guide for the parameter is displayed on PV display. The guide
display can be turned on/off with the MODE key.

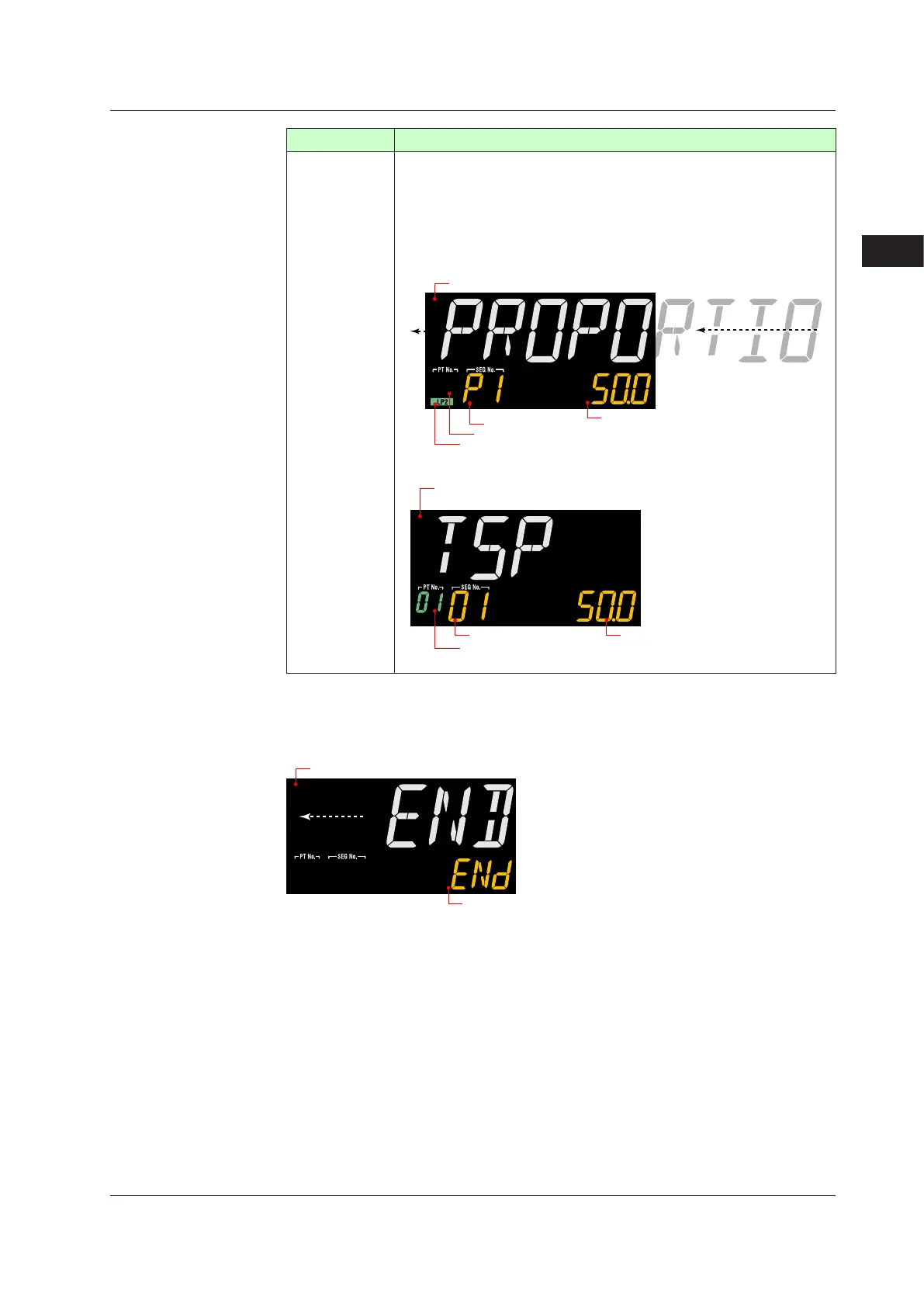

Parameter Setting Display (Example of Operation Parameter Setting Display)
The scrolling guide for the parameter is displayed.
Group number or Terminal area is displayed.
Lit while Loop-2 parameter is displayed.
Setpoint is displayed.
Parameter symbol is displayed.
Parameter Setting Display (Example of Program Parameter Setting Display)
Parameter symbol is displayed.
This guide can be turned on/off with the MODE key.
Segment number is displayed.
Pattern number is displayed.
Setpoint is displayed.
DisplayShownattheEnd(theLowestLevel)oftheParameterSettingDisplay
As shown in the figure below, the END Display is shown to indicate the end of the Menu
Display and Parameter Setting Display. There are no setting items.
END is displayed.
The scrolling guide of END is displayed.
4.1OverviewofDisplaySwitchandOperationKeys
To Next Page
