VLAN Configuration - Advanced Examples 179
b
Use the VLAN Setup page of the web interface to place ports 4 and 7
in VLANs 1 and 2 using 802.1Q tagging.
c
Use the Port Setup page of the web interface to specify that port 26
uses VLT tagging.
2
Connect port 26 on the Switch 1100 to port 1 on the Switch 3000
10/100.

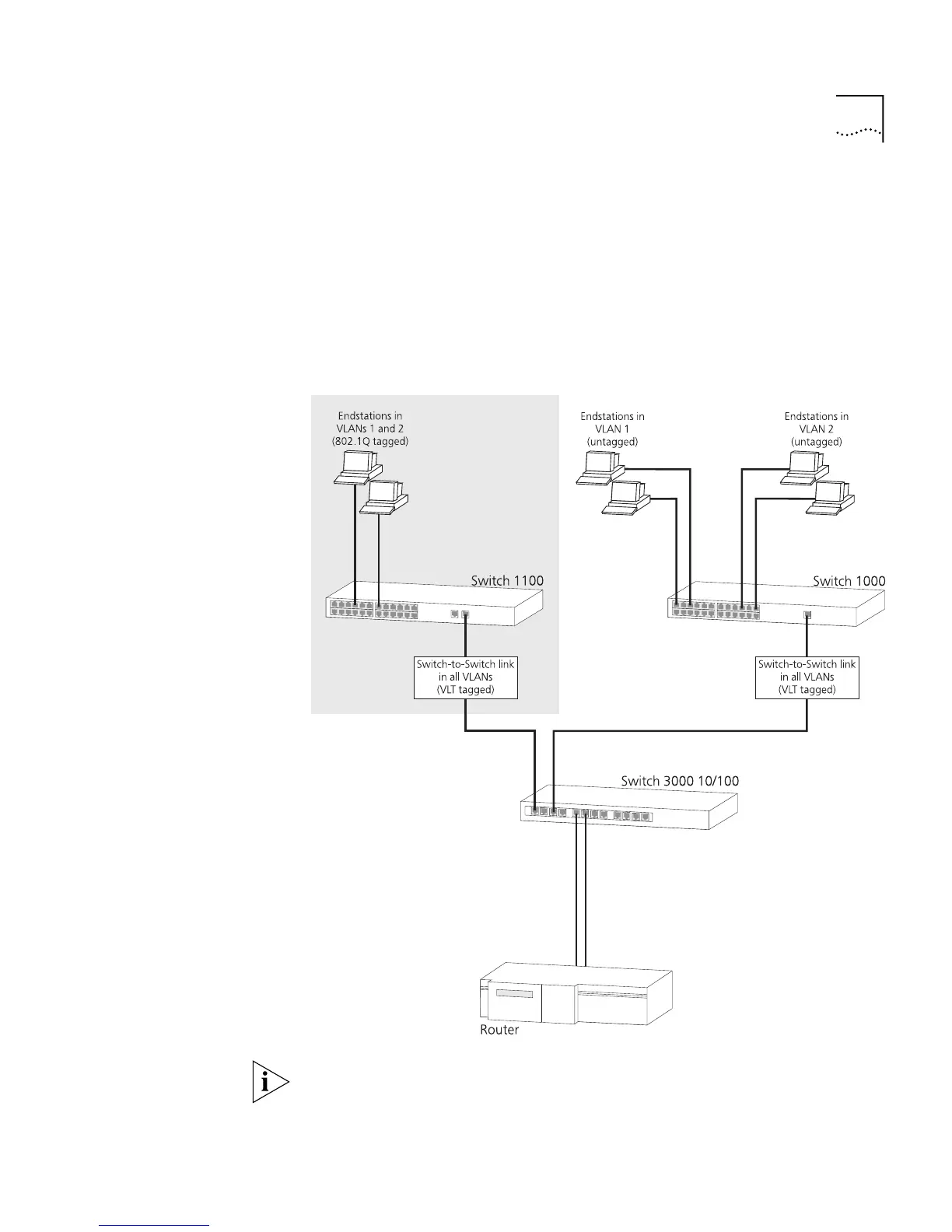

Figure 37
Connecting to legacy VLANs using VLTs
To configure the Switch 1000, Switch 3000 10/100 and router, refer to
the user documentation supplied with them.
