An Example
Figure 48 shows a LAN that has STP enabled. The LAN has three
segments, and each segment is connected using two possible links.

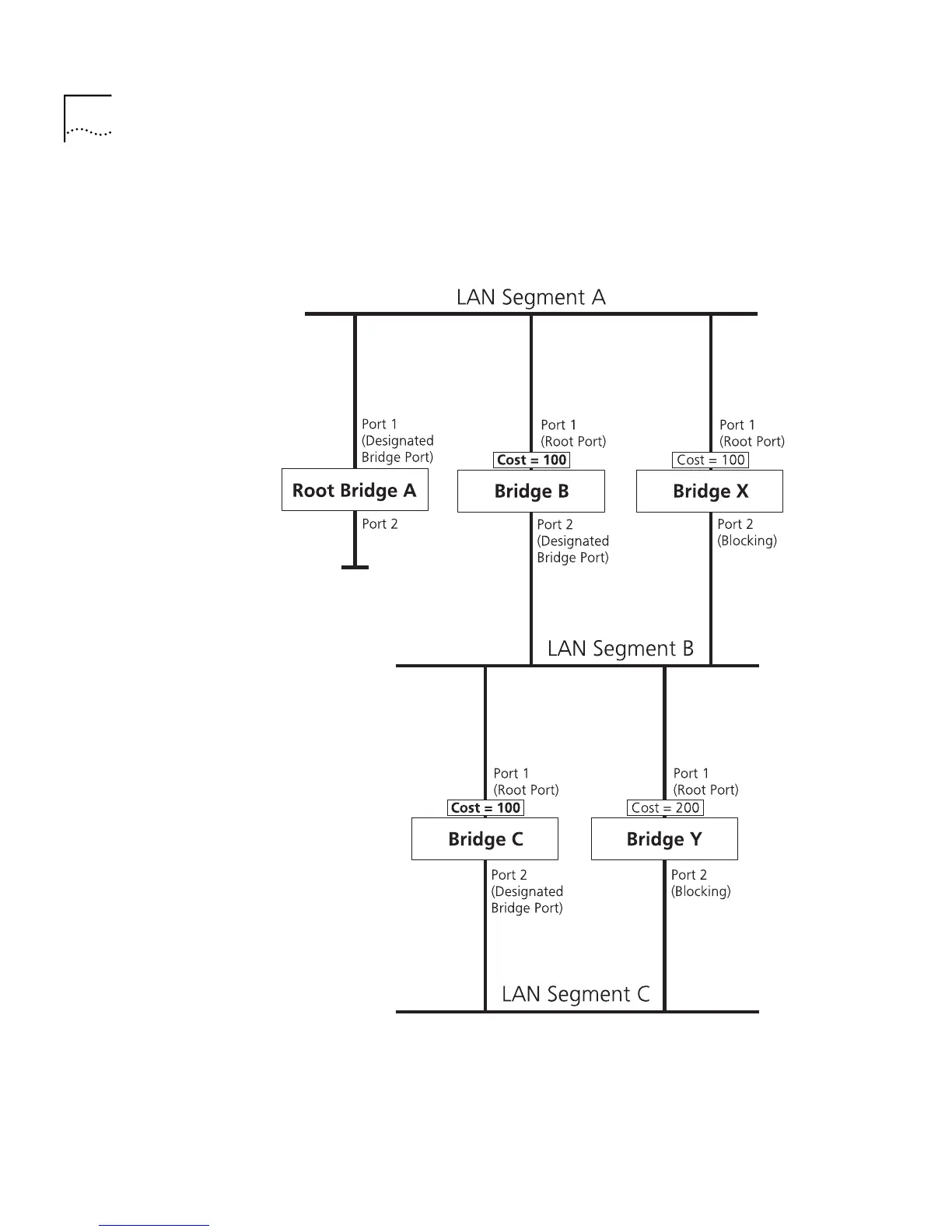

Figure 48
Port costs in a network
