3Com SuperStack II Guide

160 C
HAPTER
5: P
ORT
T
RUNKS
Port Trunk Example

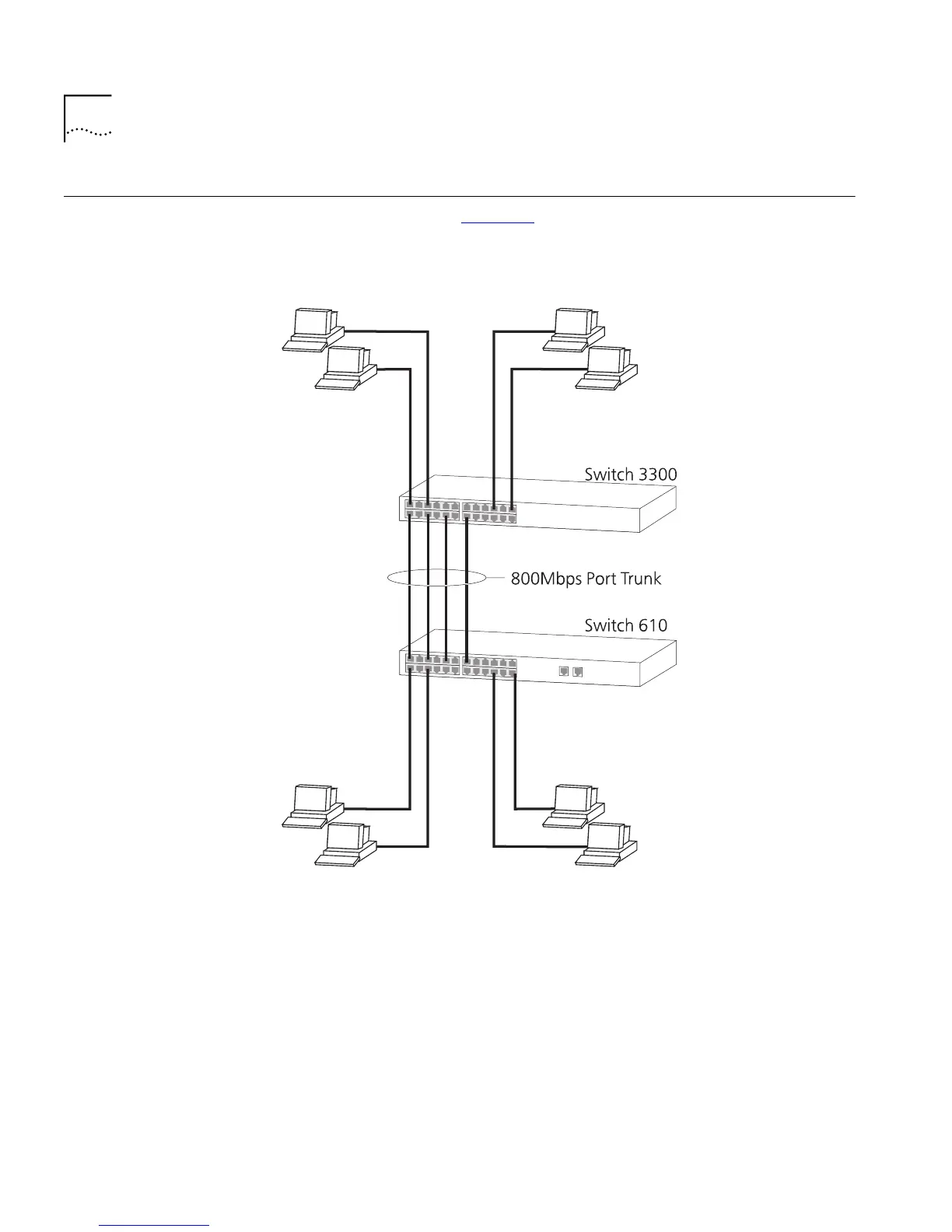

The example shown in Figure 31 illustrates an 800Mbps port trunk
between two Switch units.
Figure 31
An 800Mbps port trunk between two Switch units
To set up this configuration:
1
Prepare ports 13, 15, 17 and 19 on the higher Switch for port trunking:
a
Use the web interface to ensure that the ports have an identical
configuration:
b
Use the Port Trunk Setup page of the web interface to specify that
ports 13, 15, 17 and 19 are ports of the port trunk.
