Displaying the Speed and Duplex Mode of Ports
You can display the speed and duplex mode of ports in the Switch
graphic using the Port Summary page.
To access the page:
■
Click the
Summary
hotlink under the Switch graphic. The Port

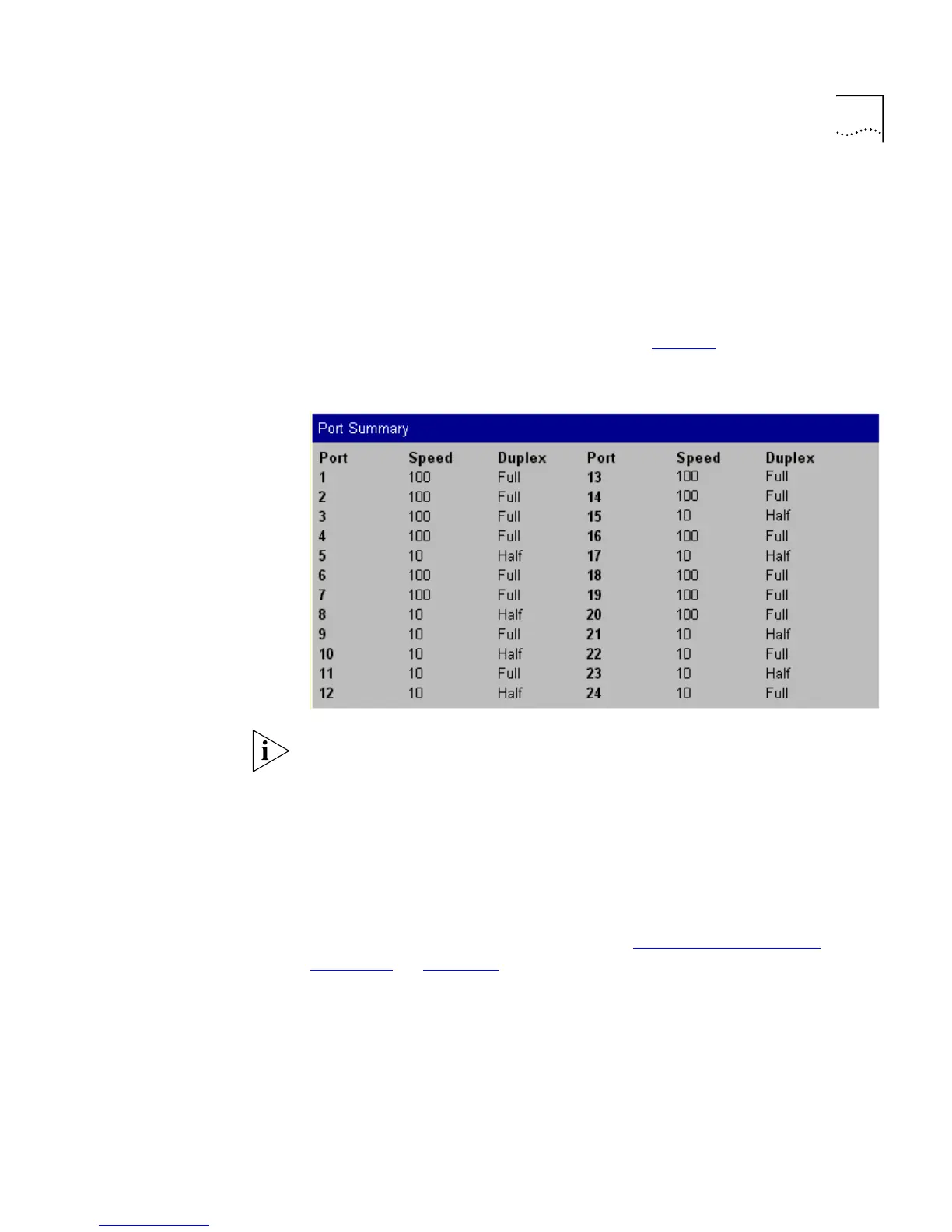

Summary page is displayed as shown in Figure 7
.
Figure 7
The Port Summary page
If you have an Expansion Module fitted to your Switch, the Expansion
Module port numbers follow on sequentially from the number of fixed
ports.
Refreshing the Switch Graphic
The Switch graphic does not update itself automatically — if you make a
change to the status of a port, you need to click the
Refresh
hotlink
positioned under the Switch graphic. If, after clicking Refresh, the Switch
graphic does not update, you may need to make a small change to your
Web browser; for more information, see “Solving Web Interface
Problems” on page 214.
