Acteon X-MIND prime 3D ceph - Page 120

Service Manual – Installation
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
118

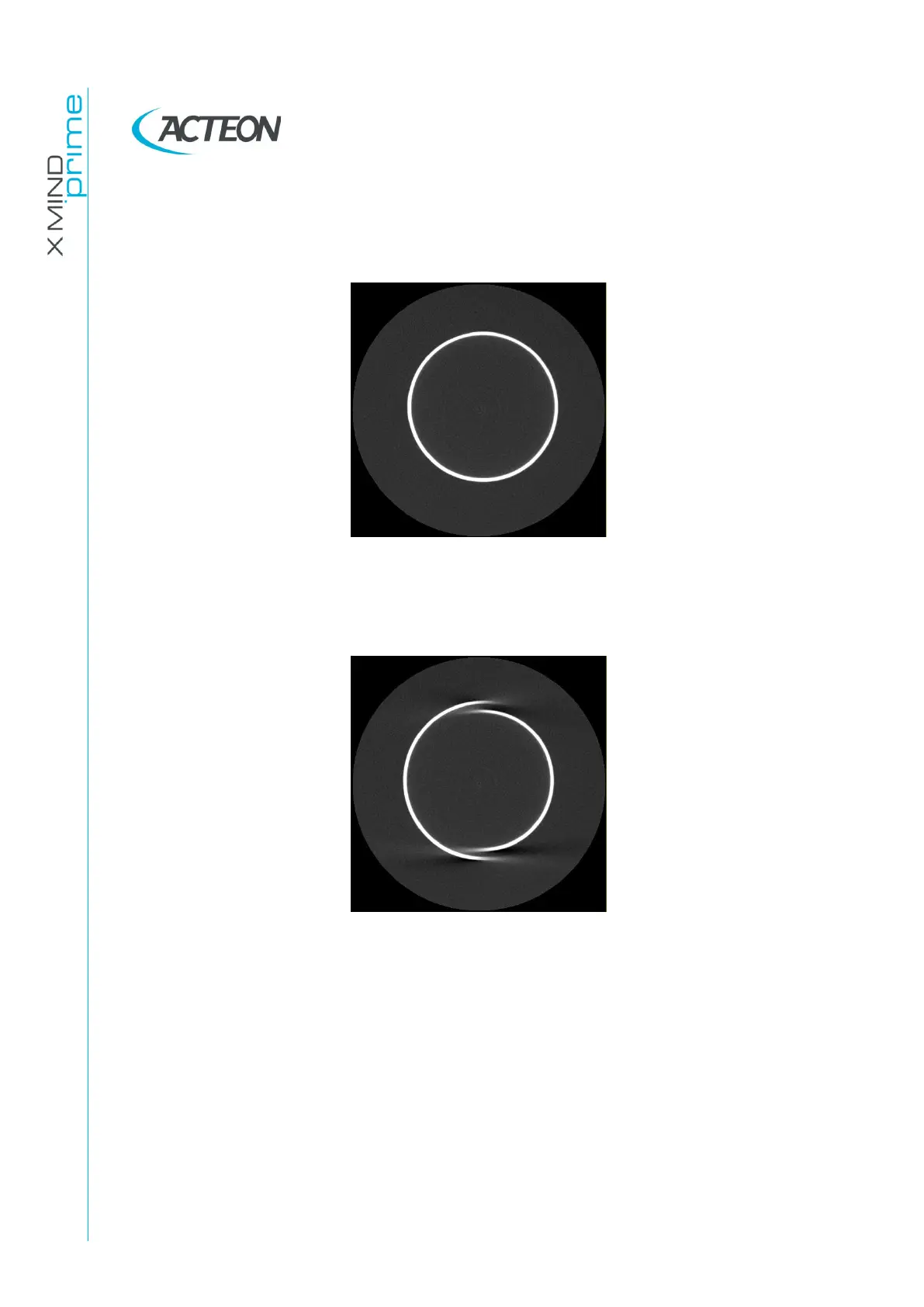

7. Scroll the slices: the image has to provide a continuous line as shown in Figure
42 .
Figure 42
8. In case the reconstruction is not correct (as shown in Figure 43 ) it will be
necessary to follow the procedure described in paragraph 11.2.10.
Figure 43
