Service Manual – Periodic maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
221
- 3D Full Dentition
- Maxillary single jaw 85x50 volume
- Mandibular single jaw 85x50 volume

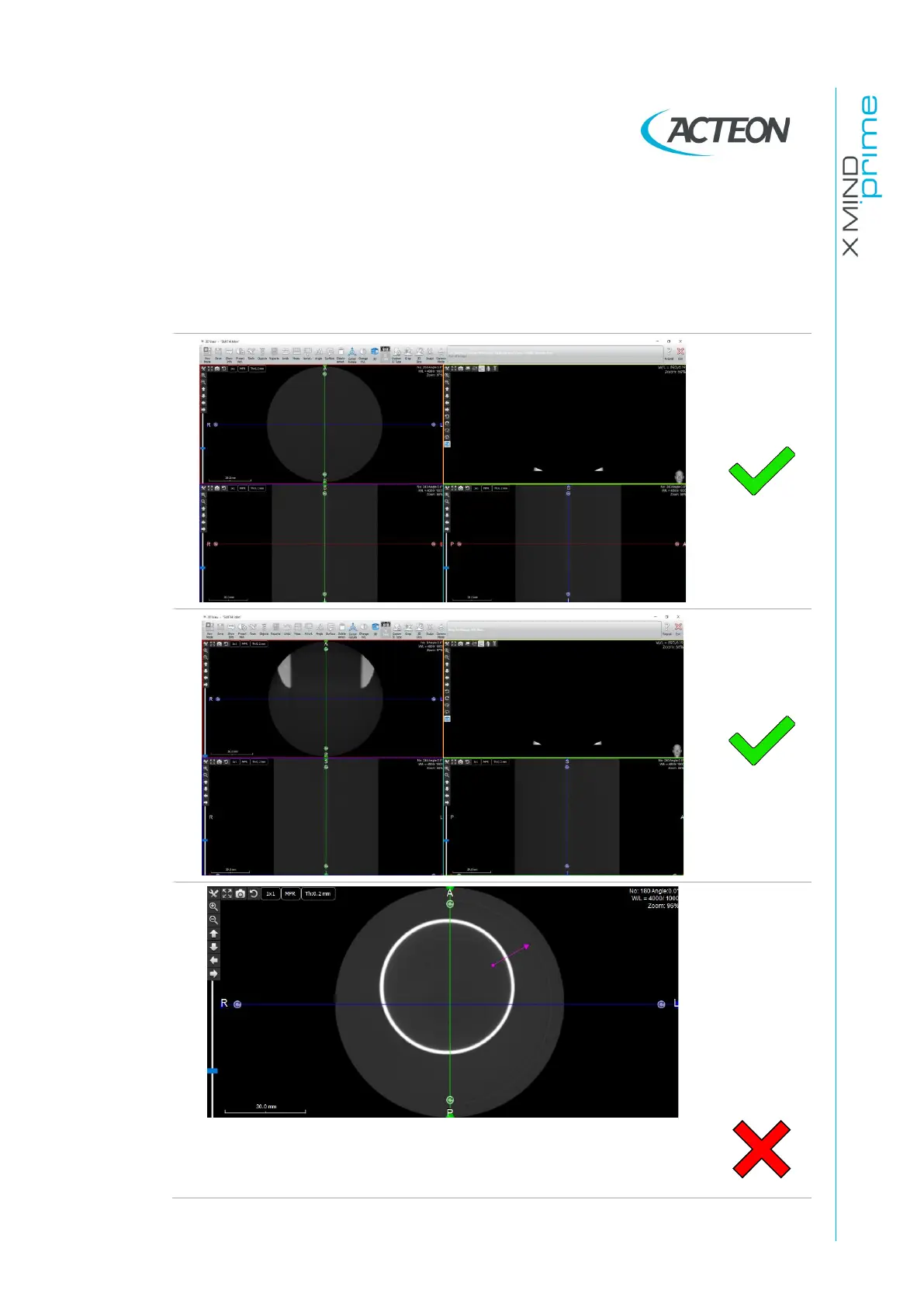

42. Open the volumes in AIS 3D and scroll all the reconstructed slices along the
volume height verifying that there are no artefacts (e.g. rings artefacts):
Example of an artifact (indicated by the pink arrow) on an
acquisition with the Centering cylinder P/N 5207900900 in the X-ray
field
