Collimator Width and Height physical
measurement
• 3D collimator checks

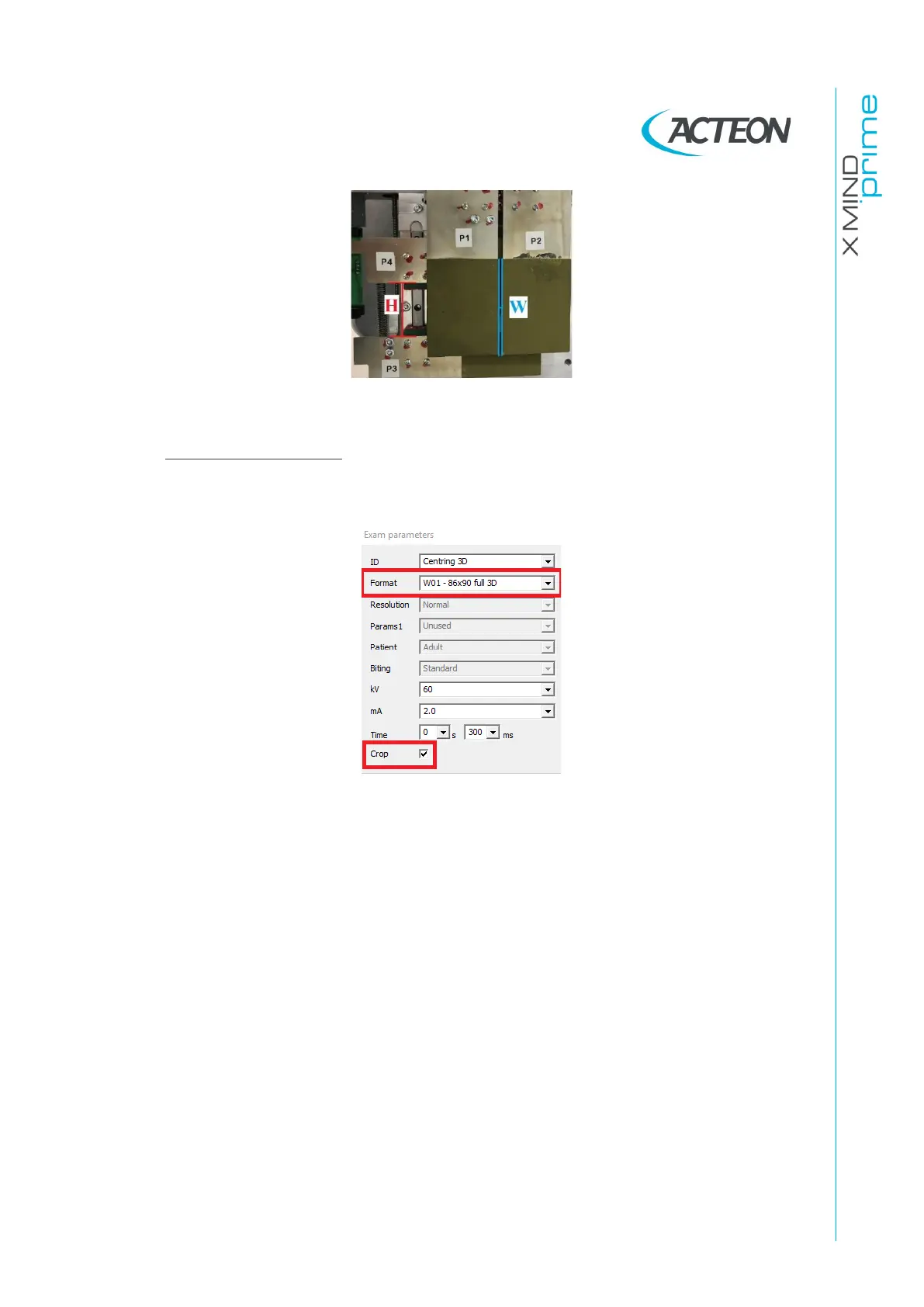

6. In the “Exam parameters” window set the “Centring 3D” ID
7. Set the crop option and 60kV 2mA 300ms:
8. Acquire one image for each of the following 3D window formats:
• W01 – 86x80 full 3D
• W02 – 86x50 Mand
• W03 – 86x50 Maxil
• W04 – 50x50 Maxil
• W05 – 50x50 Mand
