Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
Warning
Before proceeding with following points perform the primary collimator
alignment checks/adjustments requested by paragraphs 11.2.9.1 and
11.2.9.2
Checks
1.
Rotate the ceph head support in antero-posterior (AP) position
2.
Open "PhD_C_Test.exe" service program
3.
Select the following parameters:
- Format: Height Custom
- Resolution: High
- Param1: View of Primary collimator field
- 70kV 8mA
4.
In the image processing menu select: “Dynamic adjustment”
5.
Prepare the unit to take the ceph exam and then press the X-Ray button until
the end of the exposure
6.
Save the image as “Primary custom.bmp”
7.
Open the image in SyMage software application (C:\Program Files
(x86)\Acteon Imaging\Panoramic X-Mind Prime Ceph\SyMage)
8.

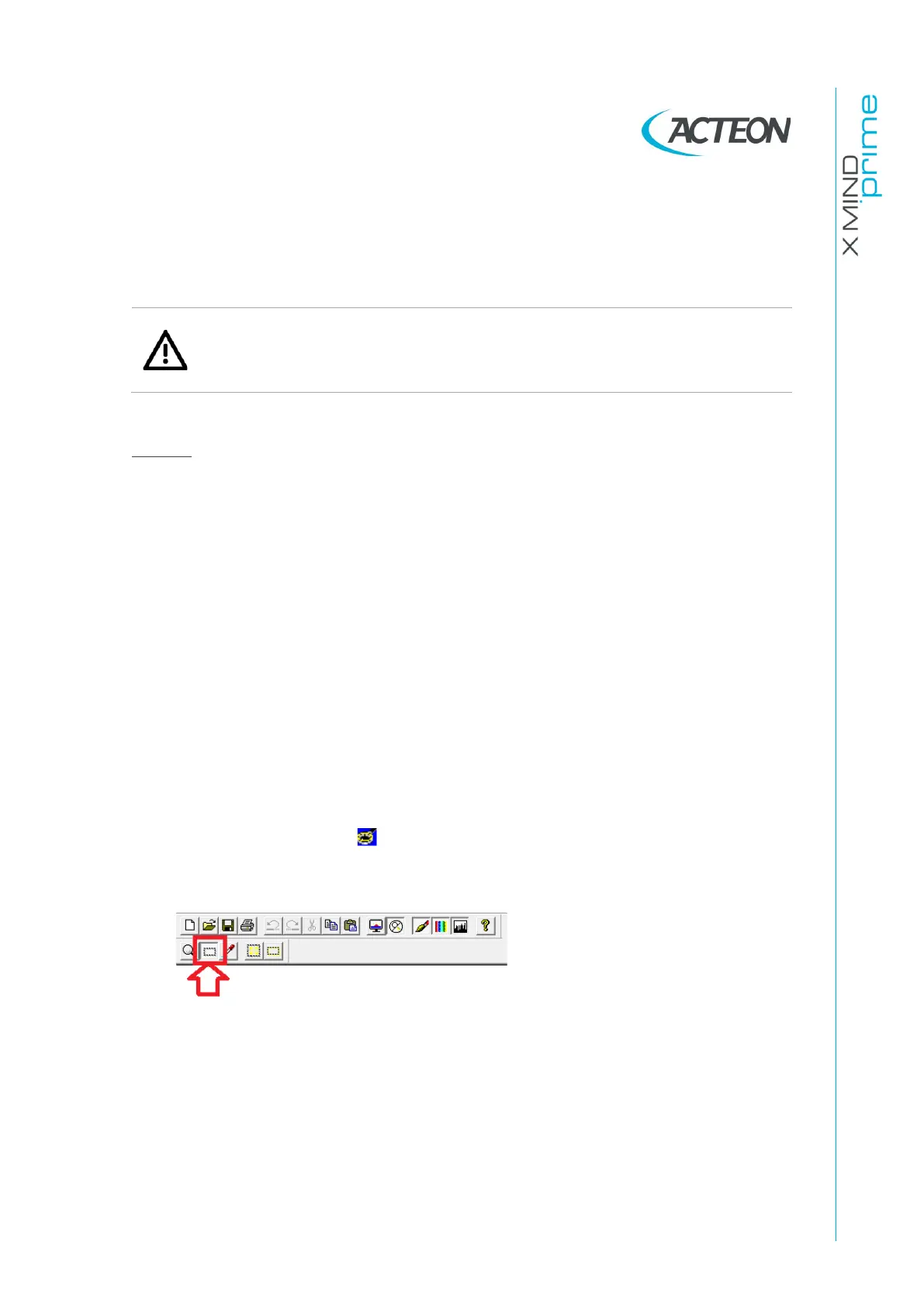

In the menu bar select the “Rectangle Selection” tool
To Next Page
