Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
9.

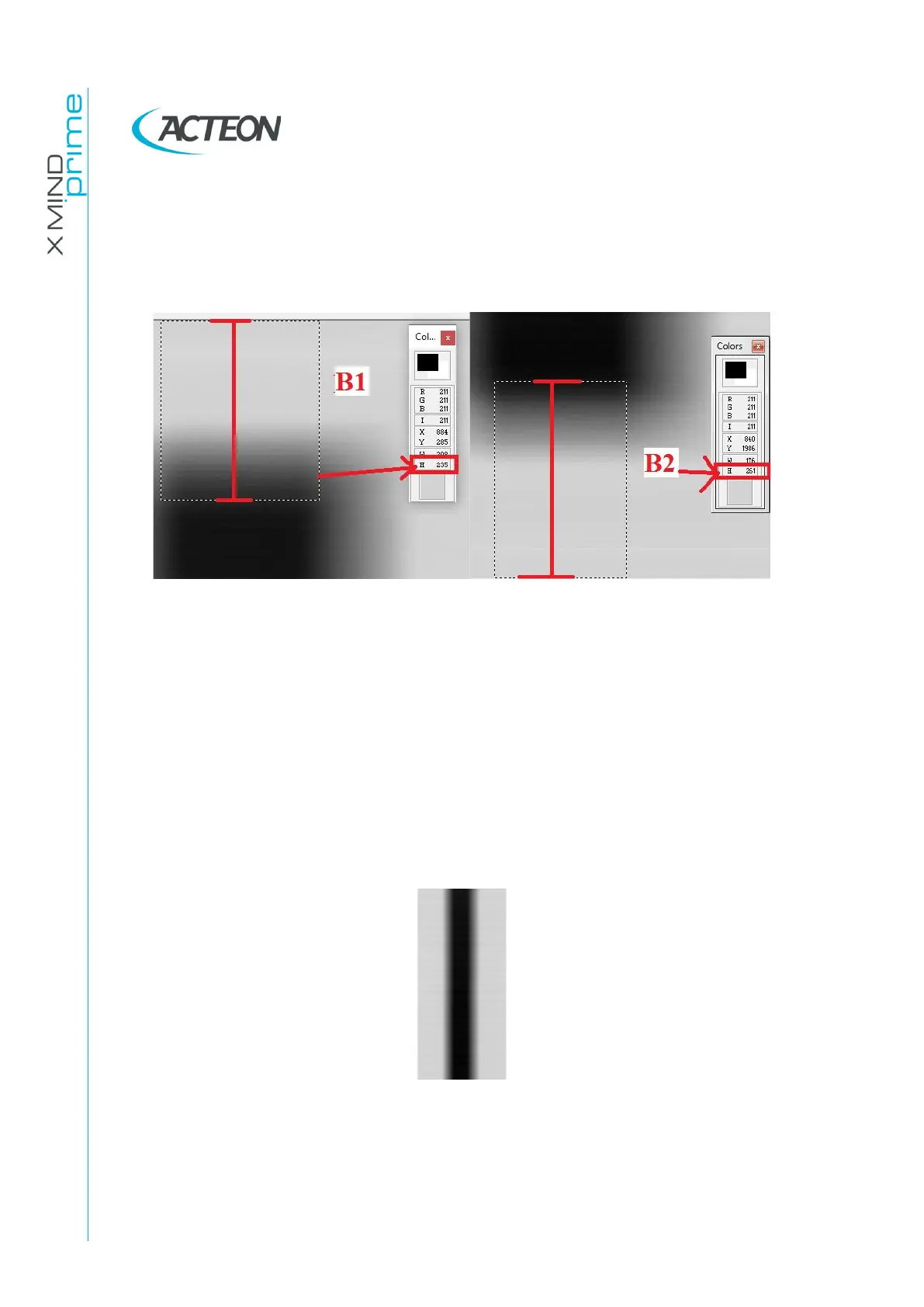

Verify that the that the upper (B1) and lower (B2)
not exposed borders
are
(measured in High resolution 0.099mm/pixel):
B1>210pixels
B1>210pixels
10.
Select the following parameters:
- Format: Height 24
- Resolution: High
- Param1: View of Primary collimator field
- 70kV 8mA
11.
Prepare the unit to take the ceph exam and then press the X-Ray button until
the end of the exposure
12.
Save the image as “Primary-full.bmp”
13.
Verify that
the upper and lower borders are fully irradiated.
