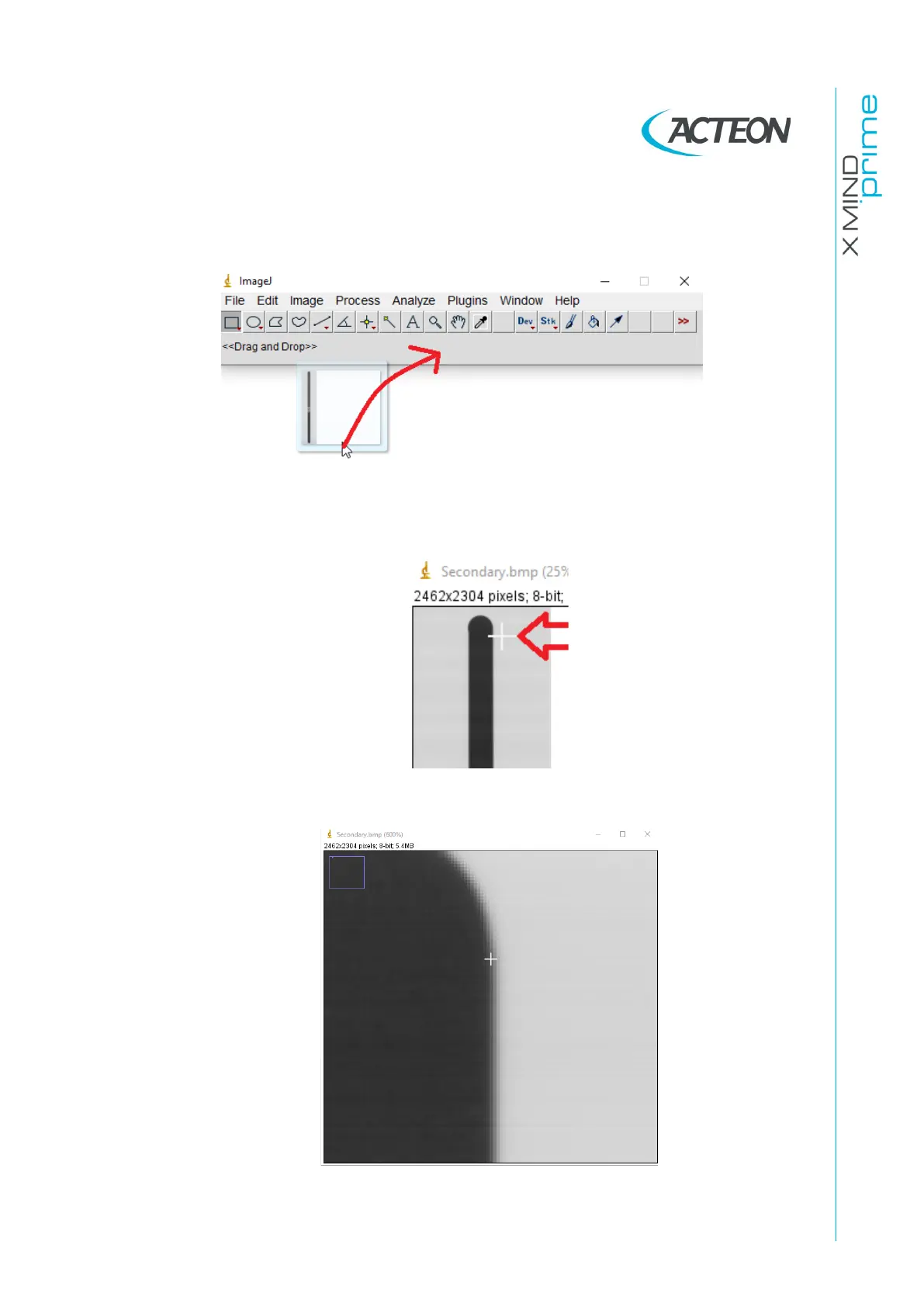

8. Import (drag and drop) the CephHigh.bmp image in the ImageJ bar.
9. With the mouse cursor point the top irradiated area of the secondary collimator
projection
10. Zoom-in on the left edge by pressing “+” on the keyboard
