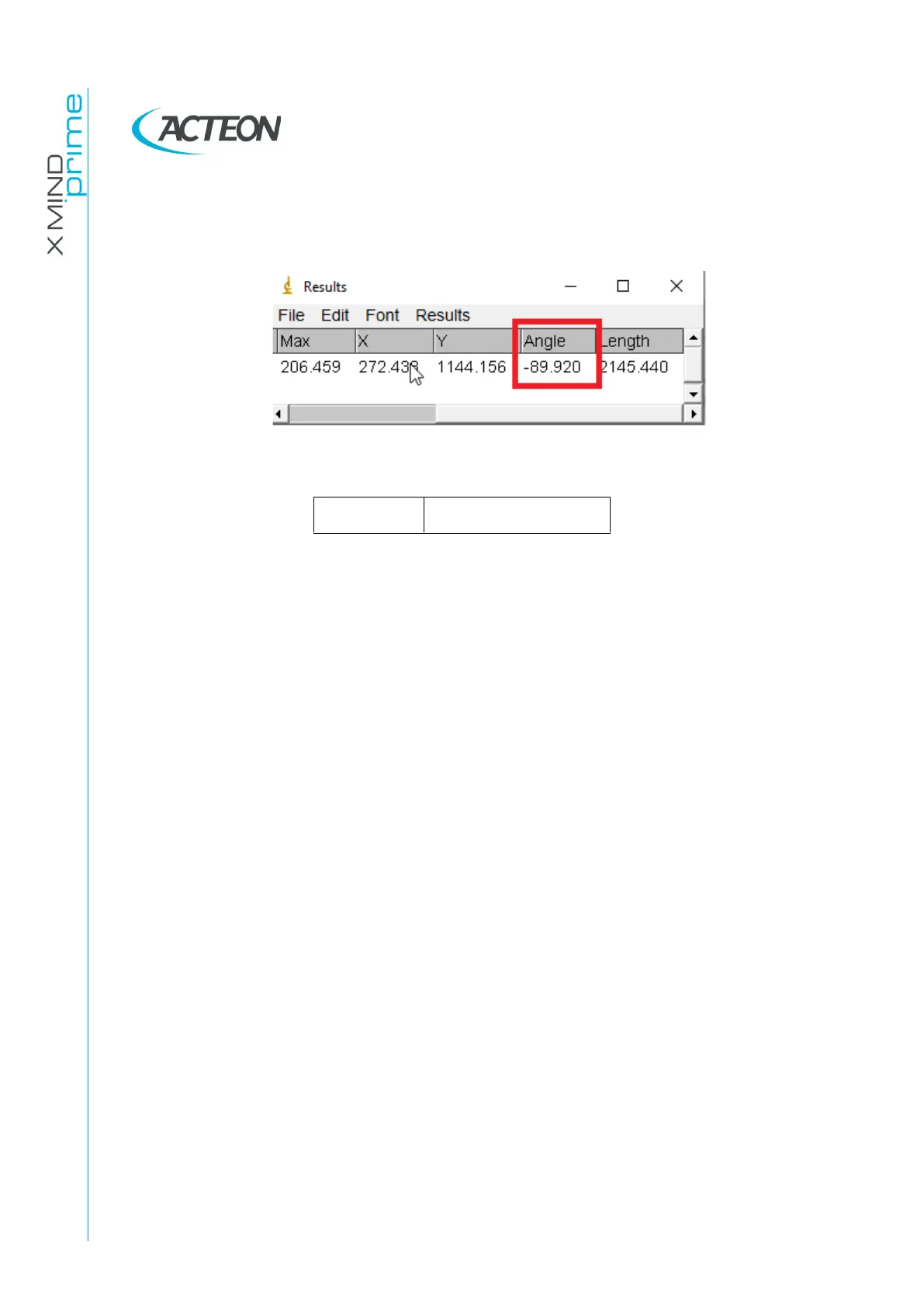

20. Verify the tilting angle of the secondary collimator by pressing Ctrl+M on the
keyboard. The angle will be displayed in the ImageJ “Result” window under the
column named “Angle”
21. Verify that the secondary collimator- ceph sensor relative Angle (measured above)
is within the following tolerance
Tolerance
|Angle|=90° ±0.1°
