Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
Adjustments
If the measured angle is out of the prescribed tolerances, the mechanical tilting of the
secondary collimator has to be corrected as described below:
1. Open the ceph group top cover

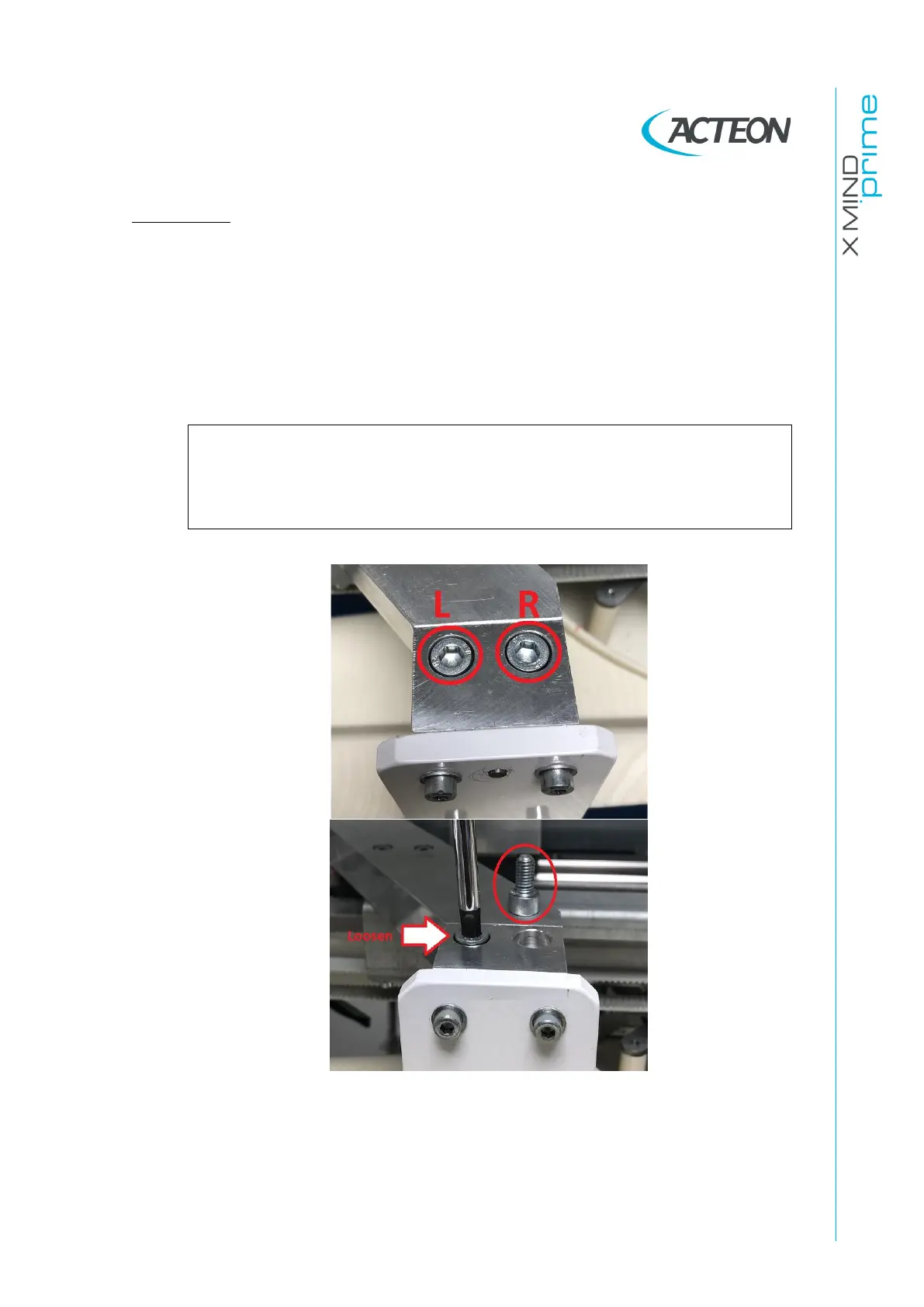

2. Completely unscrew the screw on the side where the spacers-washers must be
added according to the conventions reported by Table 1 below (right screw-R or
left screw-L) and loosen the screw on the other side
Note. The following images will report only the case in which the washers has to be
added to the right(R) side of the secondary collimator(case |Angle|<90°), operate on
the opposite side if the measure angle does not fit this specific case as prescribed by
Table 1
