Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
CORRECTION:
Note1. Since the HS (High Speed, Normal Resolution) offsets are based on HD (High
Definition, High Resolution) set of offsets, it is recommended to adjust/verify first the HD
images before performing the HS- Vertical Lines check and adjustment
HD High Definition-Vertical Lines
Before performing this procedure make sure that:
- Primary collimator is well aligned to the hear rods (see “Rotation ceph offset” checks
paragraph 11.2.11.4)
checks
22. Open PhD_C_Test (technical Tool) service program
23. Wait the unit connection
24. Select the following exam:
o Exam ID: Ceph
o Format: 30x24 LL
o Resolution: High
o kV: 60
o mA:2.2

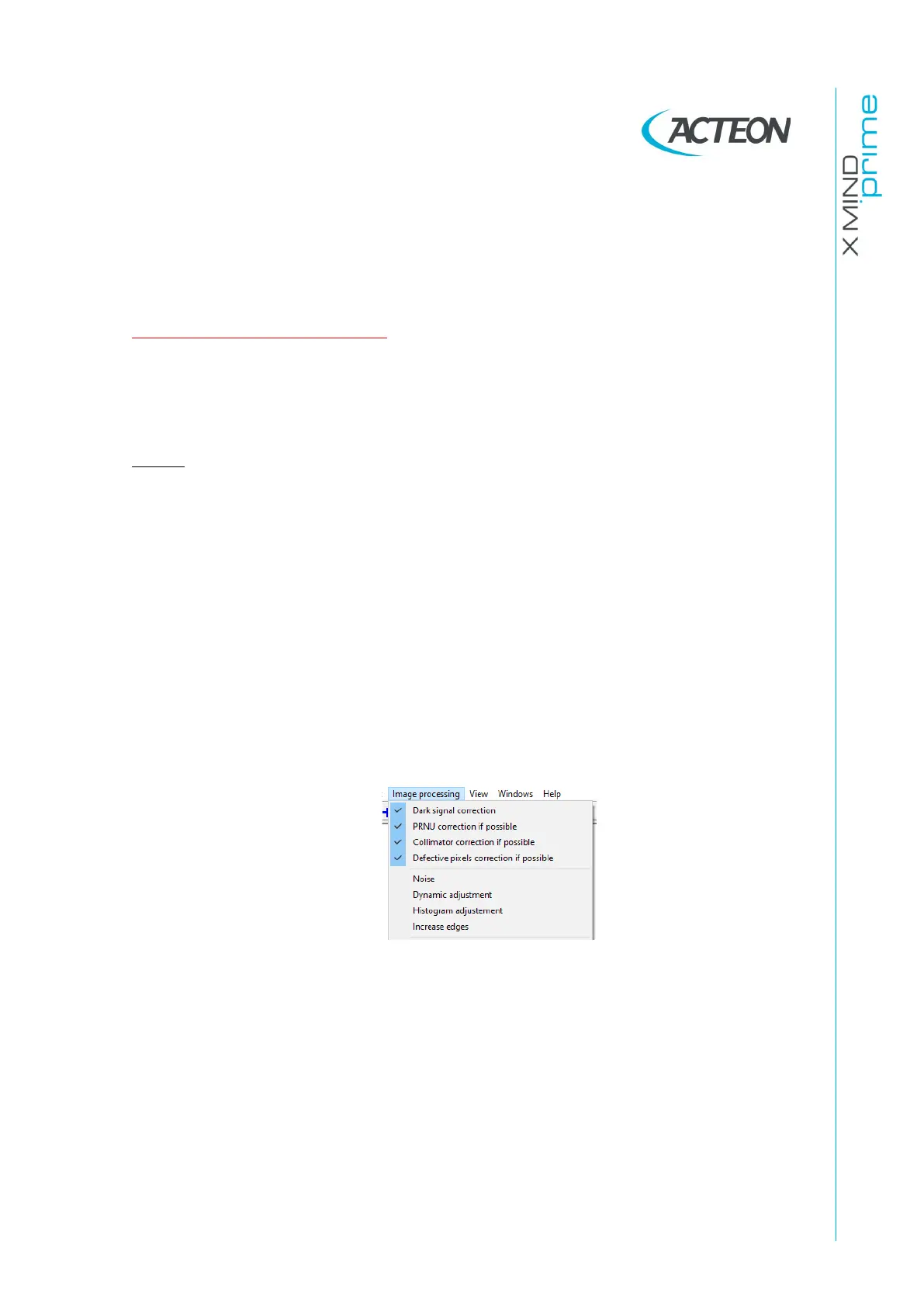

25. Verify that the Image processing options selected are like the following:
26. Place the unit ear rods in LL position and prepare the unit to acquire the above
27. Acquire the image and save it as “CephHigh.bmp”
28. Run ImageJ software (download it from Internet: eg.
http://wsr.imagej.net/distros/win/ij153-win-java8.zip)
