2-92 Chapter 2
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests

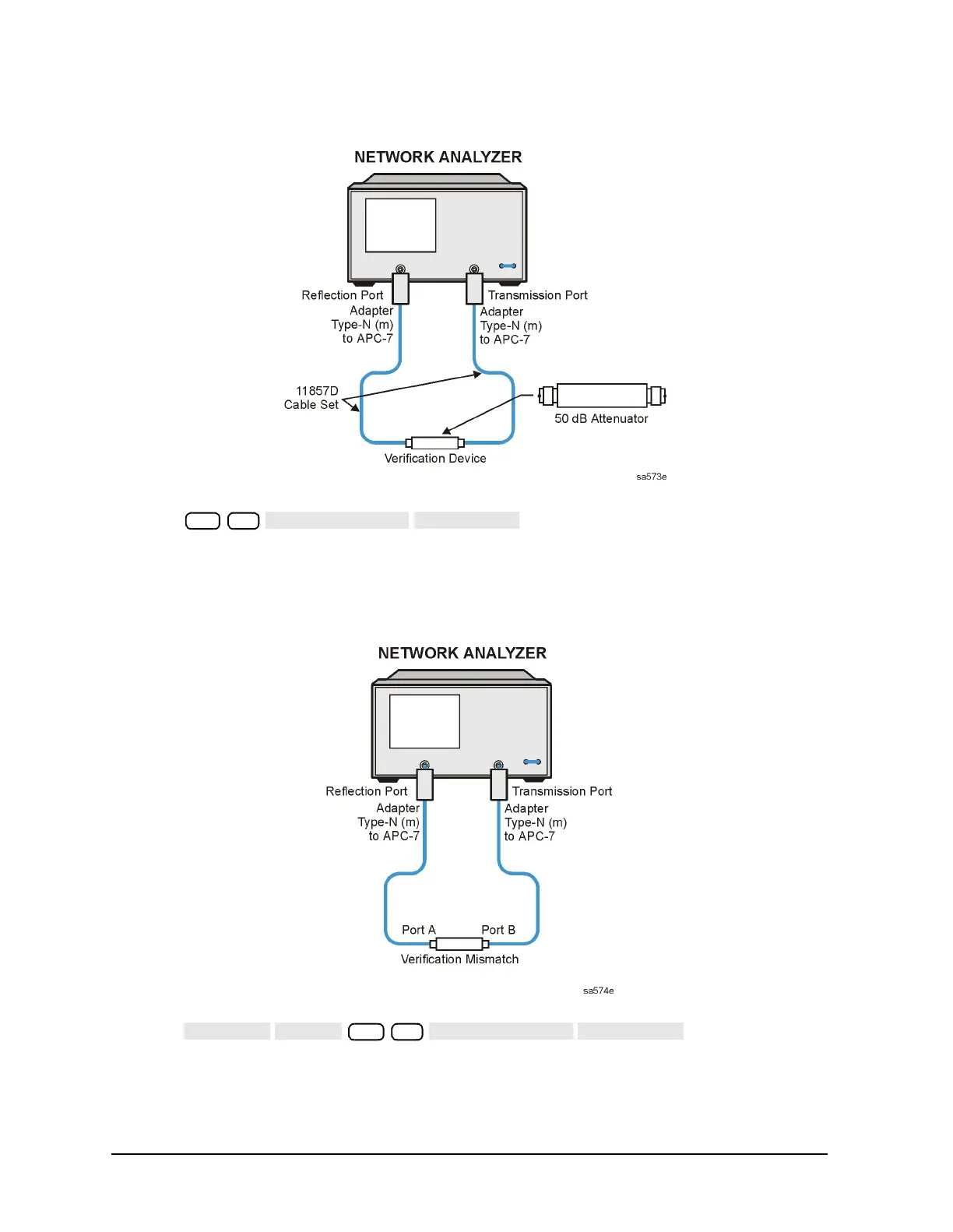

Figure 2-53 Connections for the 50 dB Verification Device
31.Press .
32.When all measurements are complete, replace the verification device with the
verification mismatch, as shown in Figure 2-54. Be sure that you connect Port A of the
verification mismatch to reference test port 1.
Figure 2-54 Mismatch Device Verification Setup 1
33.Press .
34.When the analyzer finishes all the measurements, connect the mismatch verification
device as shown in Figure 2-55. Notice that Port B is now connected to reference test
port 1.
