2-10 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
3. Press to run the test:
• If you switched the record function off, the test pauses after each S-parameter
measurement. Press after each measurement.
• If you switched the record function on, the analyzer measures all S-parameters
(magnitude and phase) without pausing. Also, the analyzer only displays and prints
the PASS/FAIL information for the S-parameter measurements that are valid for
system verification.

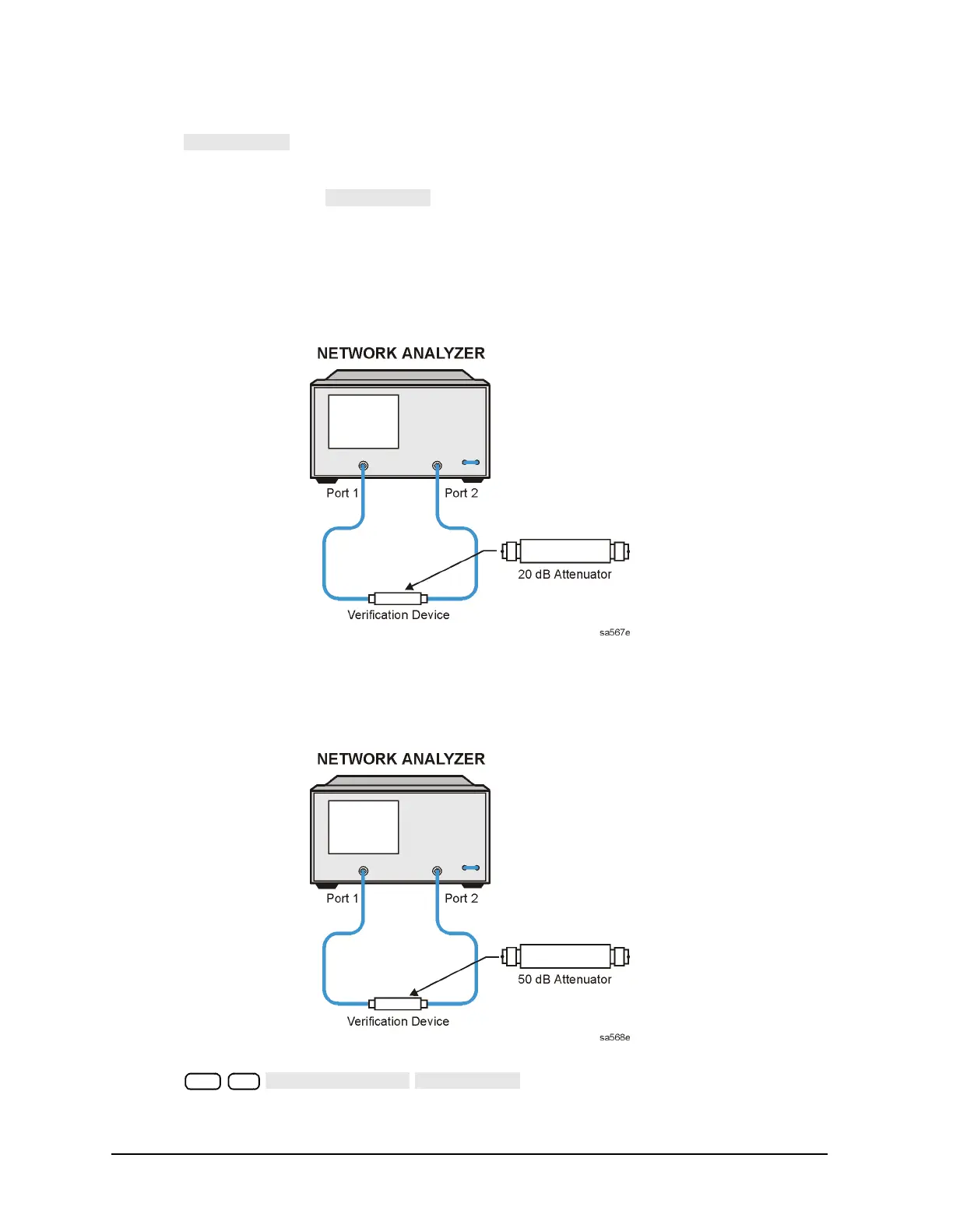

Figure 2-4 Connections for the 20 dB Verification Device
4. When the analyzer finishes all the measurements, connect the 50 dB attenuator
(supplied in the verification kit), as shown in Figure 2-5.
Figure 2-5 Connections for the 50 dB Verification Device
5. Press .
