88 Chapter 3
Basic Operation
Using the Web Server
7. Click the Signal Generator Web Control menu button on the left of the page. A new web page will be
displayed as shown below in Figure 3-8.

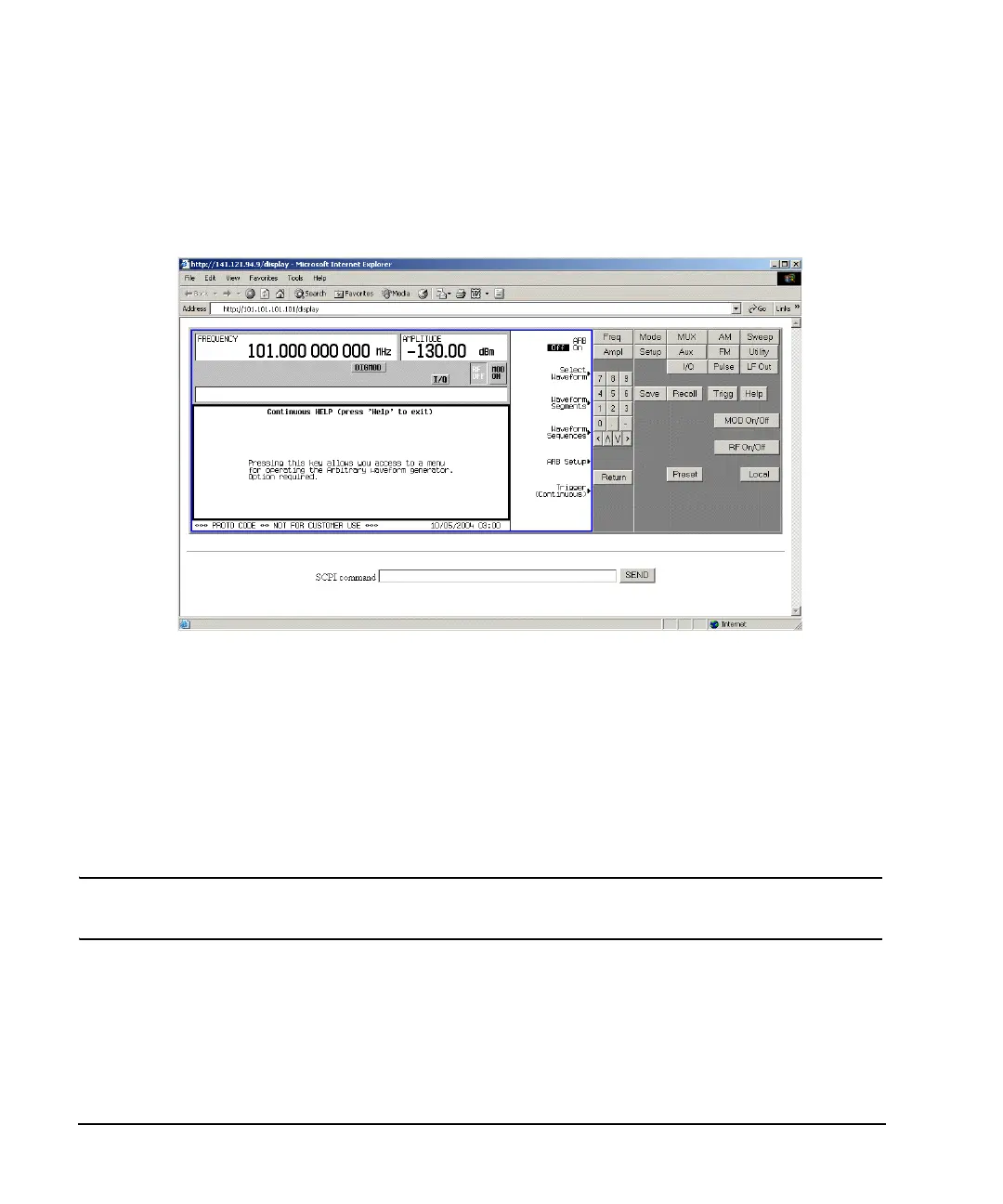

Figure 3-8 Web Page Front Panel
This web page remotely accesses all signal generator functions and operations. Use the mouse pointer to
click on the signal generator’s hardkeys and softkeys. The results of each mouse click selection will be
displayed on the web page. For example, click on the Frequency hardkey then use the front-panel key pad to
enter a frequency. You can also use the up and down arrow keys to increase or decrease the frequency.
You can use the SCPI Command text box at the bottom of the front-panel display to send commands to the
signal generator. Enter a valid SCPI command, then click the SEND button. The results of the command will
be displayed on a separate web page titled, “SCPI Command Processed”. You can continue using this web
page to enter SCPI commands or you can return to the front panel web page.
NOTE It may be necessary to use the web browser Refresh function if the web page does not
update with new settings.
