564 Chapter 16
W-CDMA Uplink Digital Modulation for Receiver Test
W-CDMA Uplink Concepts
Figure 16-81 illustrates the frame number alignment for compressed mode when the TGPRC data field is set
to Infinity. In this case, the frame clock period must be equal to or be a multiple of the compressed mode
(TG pattern length) definition.

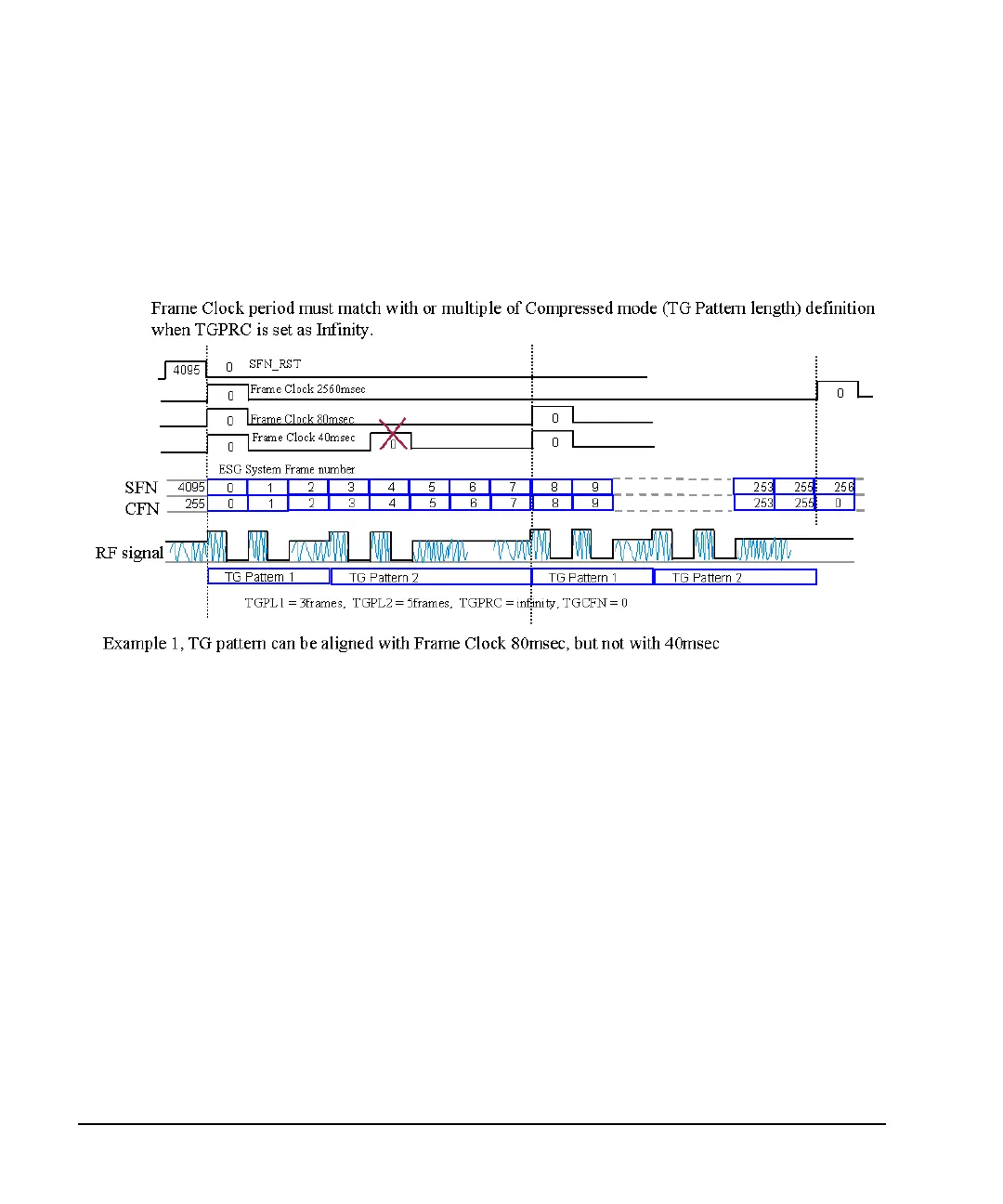

Figure 16-81 DPCH Synchronization - Frame Number Alignment for Continuous (Infinity)
Compressed Mode
