W-CDMA Uplink Digital Modulation for Receiver Test
W-CDMA Uplink Concepts
Figure 16-82 illustrates the frame number alignment for compressed mode when it is required to align with
CFN number counting. This mode of operation requires a frame clock of 2560 ms or a system frame number
reset signal as the frame sync trigger.

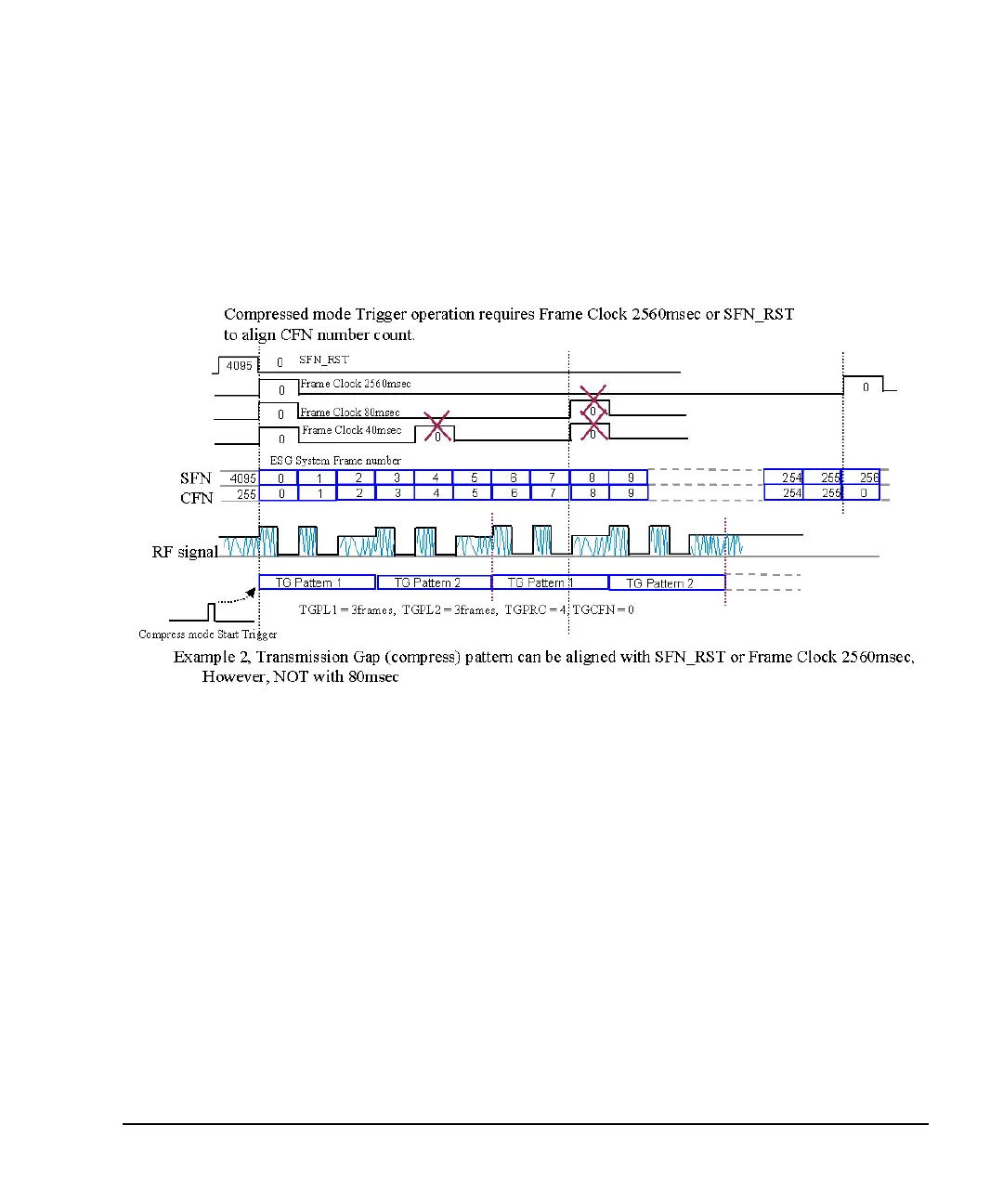

Figure 16-82 DPCH Synchronization - Frame Number Alignment for Compressed Mode with CFN
Number Count
