6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
102

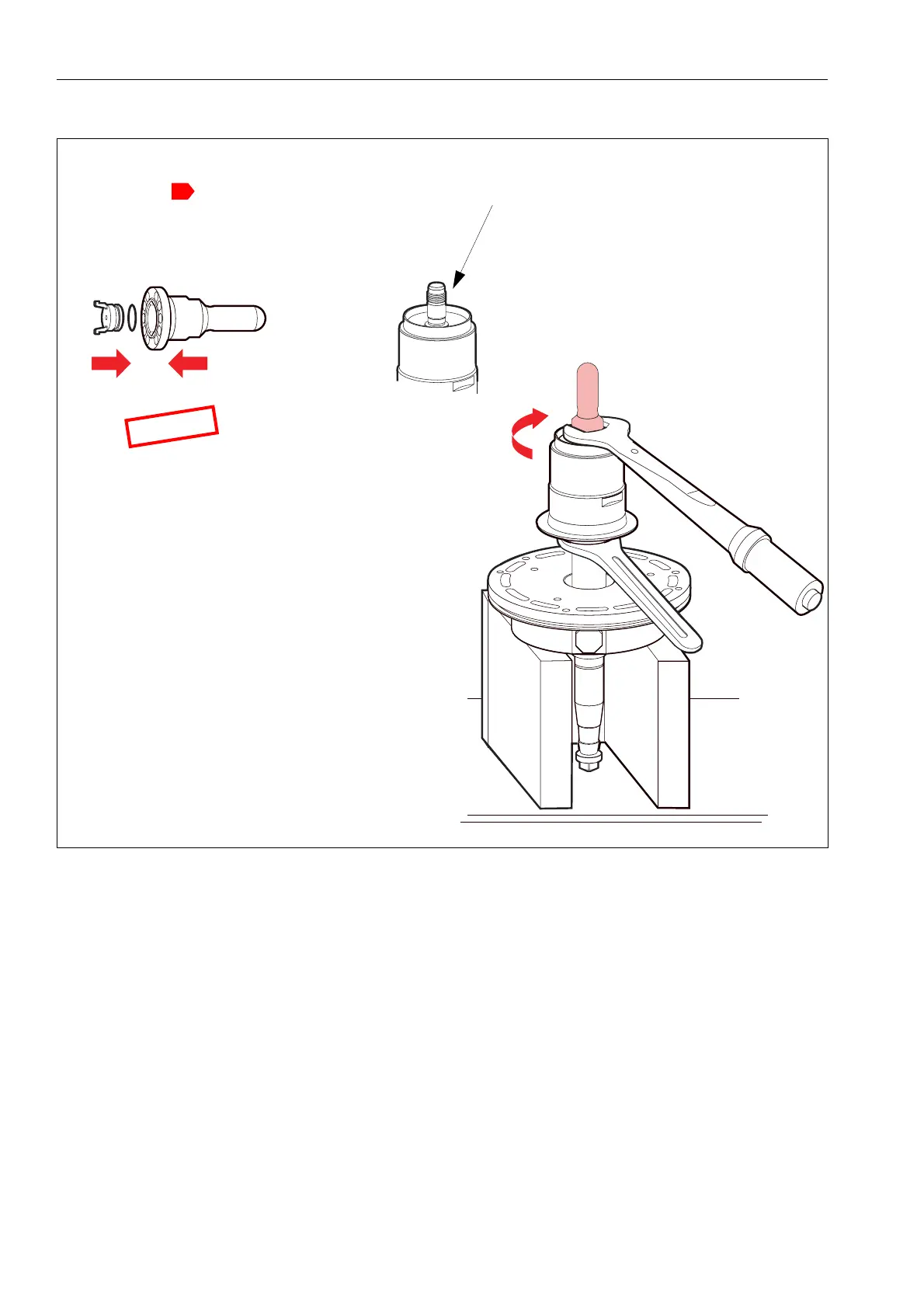

8 Fitting the oil pump.
G0866991
N
O
T
E
Clean the oil pump and make
sure that the bottom hole is not
clogged and that all parts have
room temperature before
mounting.
a Fit O-ring onto lubrication oil orifice. Spread oil
film on O-ring.
o
c Lubricate all threads before
assembly.
d Fit the oil pump, tightening
torque 150 Nm.
b Push lubrication oil orifice into oil pump. Be sure to
line up tabs on orifice with slots in pump.
