6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
94

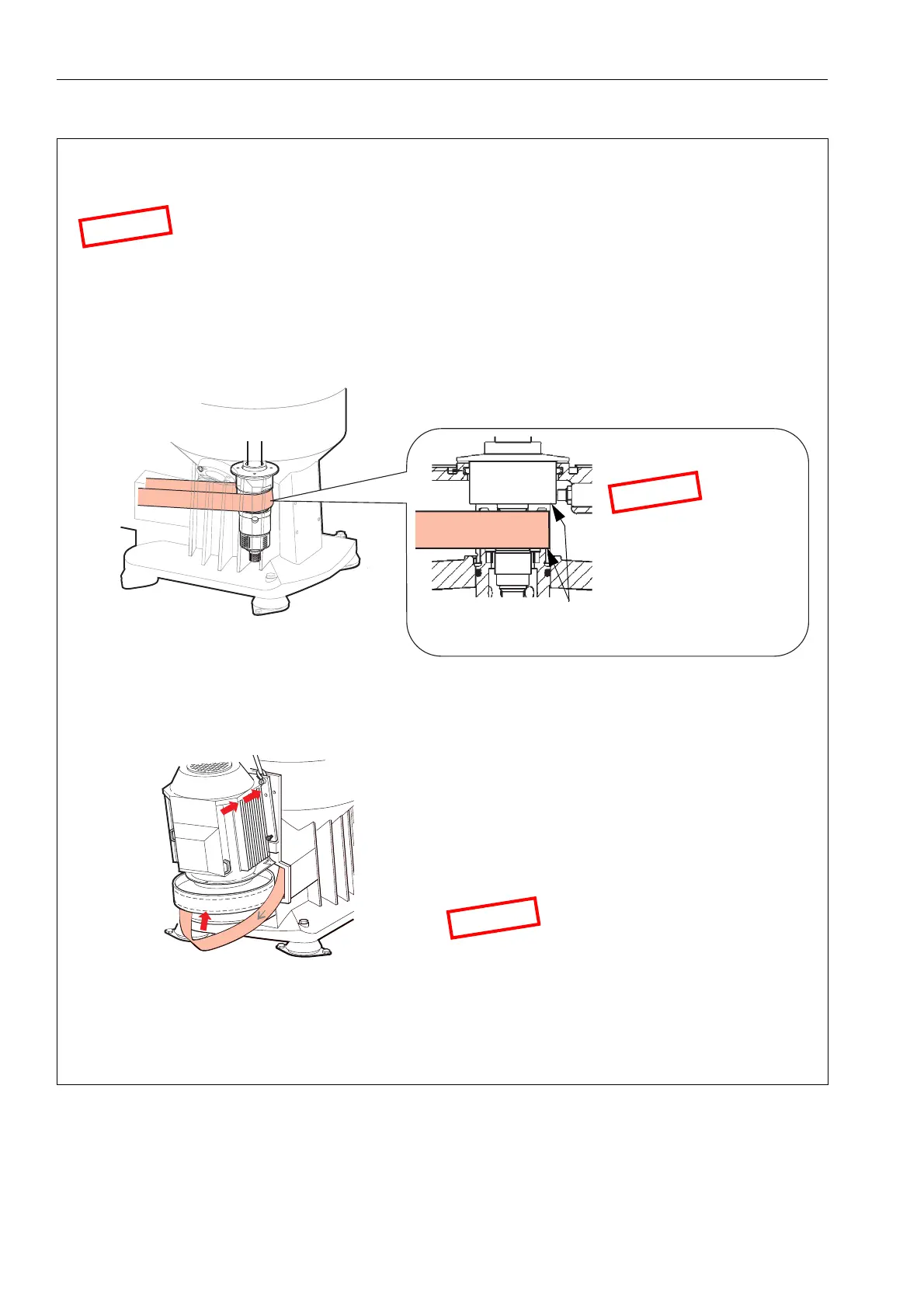

6 Fitting the flat belt.
G08588D1
a Lift up the belt to the middle (centre) of the
spindle pulley.
c Tighten the two upper screws.
d Tighten all motor attachment screws.
b Fit the flat belt to the motor belt pulley.
N
O
T
E
Do not turn the spindle until the
motor is tightened properly to the
frame.
N
O
T
E
For correct position,
centre the belt on the
spindle pulley camber.
Clearance
N
O
T
E
Clean the inside of the frame before fitting
the flat belt, and make sure that there is no
oil on the belt.
