73
6 SERVICE, DISMANTLING, ASSEMBLY 6.3 DISMANTLING

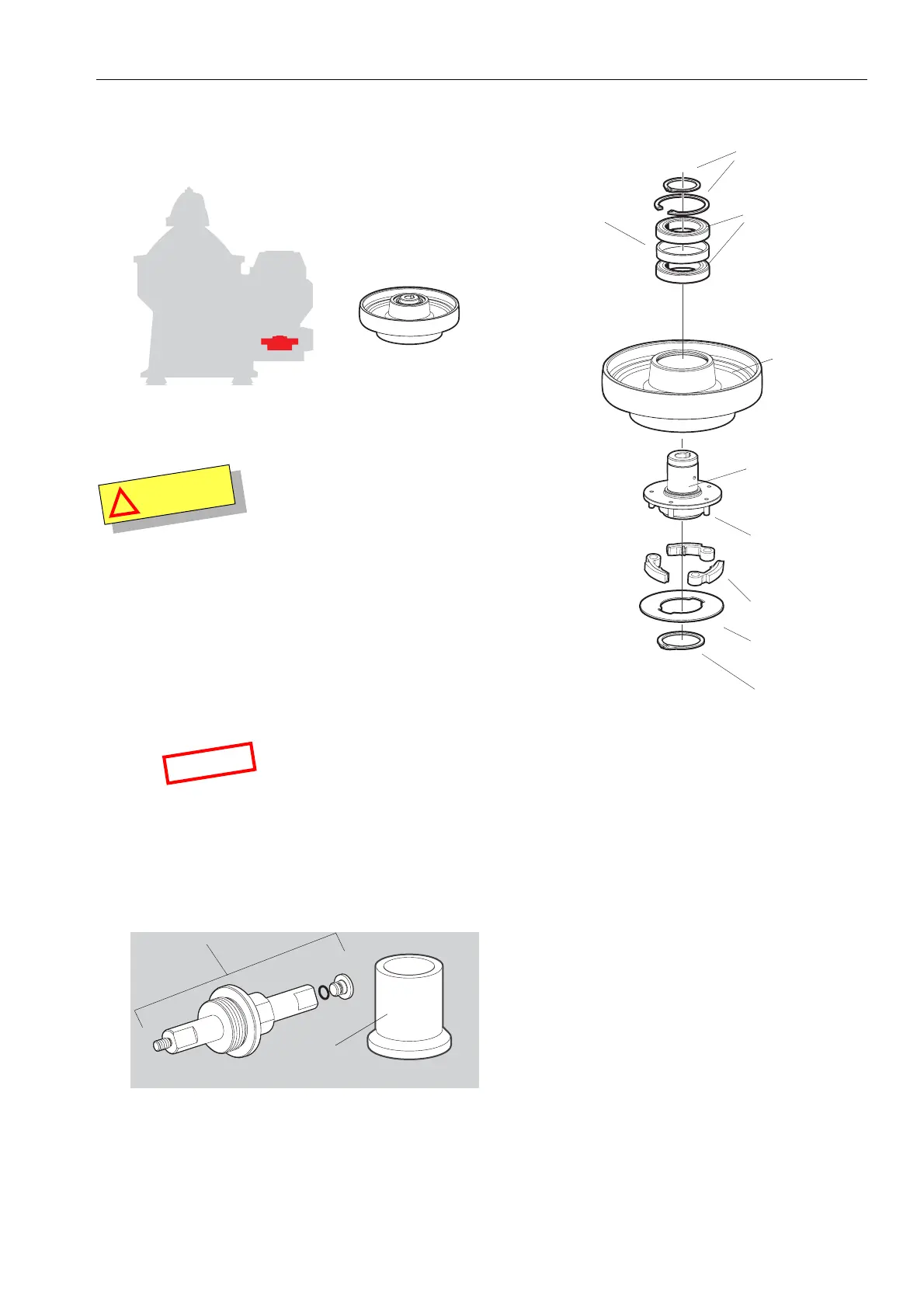

6.3.6 Centrifugal clutch
W
A
R
N
I
N
G
!
Entrapment hazard
To avoid accidental start, switch off and lock-out
power supply before starting any dismantling work.
Make sure that machine has come to a complete
standstill before starting any dismantling work
(takes about 22 minutes from switch off).
G08651B1
Snap rings
Ball bearings
Spacing ring
Belt pulley
Coupling
hub
Parallel pin
Friction blocks
(3=60 Hz)
Cover
Snap ring
G0864751
N
O
T
E
50 Hz = 5 Friction blocks
60 Hz = 3 Friction blocks
G0865041
1
2
