6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
114

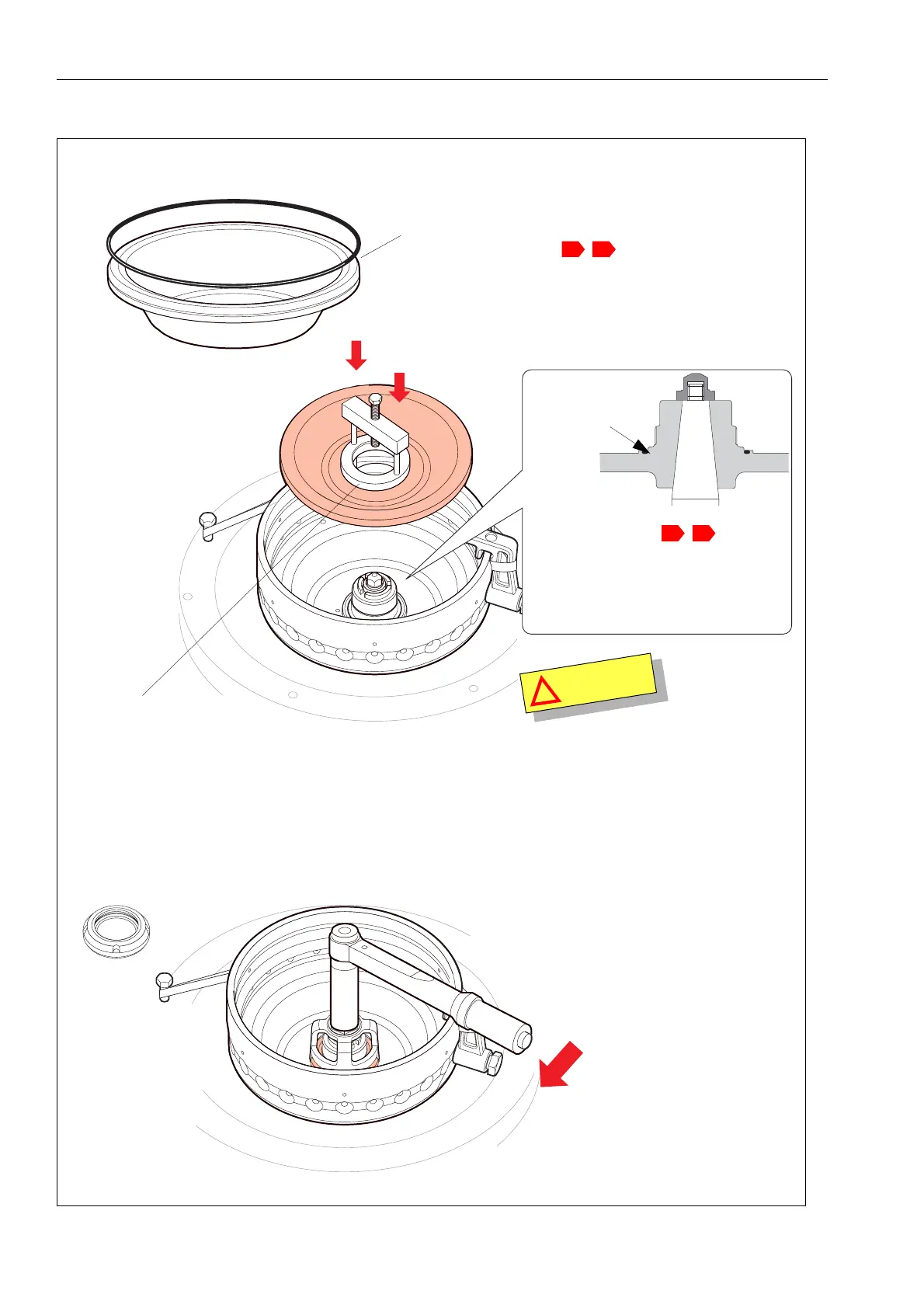

8 Fitting the discharge slide.
G0861961
a Apply a thin layer of silicone grease and
fit the rectangular ring .
i
o
c Fit the lifting tool and
lower the discharge
slide into the bowl.
b Apply a thin layer of silicone grease
and fit the O-ring
i
o
O-ring
e Fit the nut.
f Fit the spanner for nut and
tighten the nut with a torque
wrench to a torque of min.
200 Nm.
d Remove the lifting tool.
W
A
R
N
I
N
G
!
Crush hazard
The ring on the lifting tool must be
pushed home against the discharge
slide, otherwise it may come loose
from the tool.
g Remove the spanner for nut.
