Alfa Laval S 821 - Foundation Drawing

163
8 TECHNICAL REFERENCE 8.6 DRAWINGS

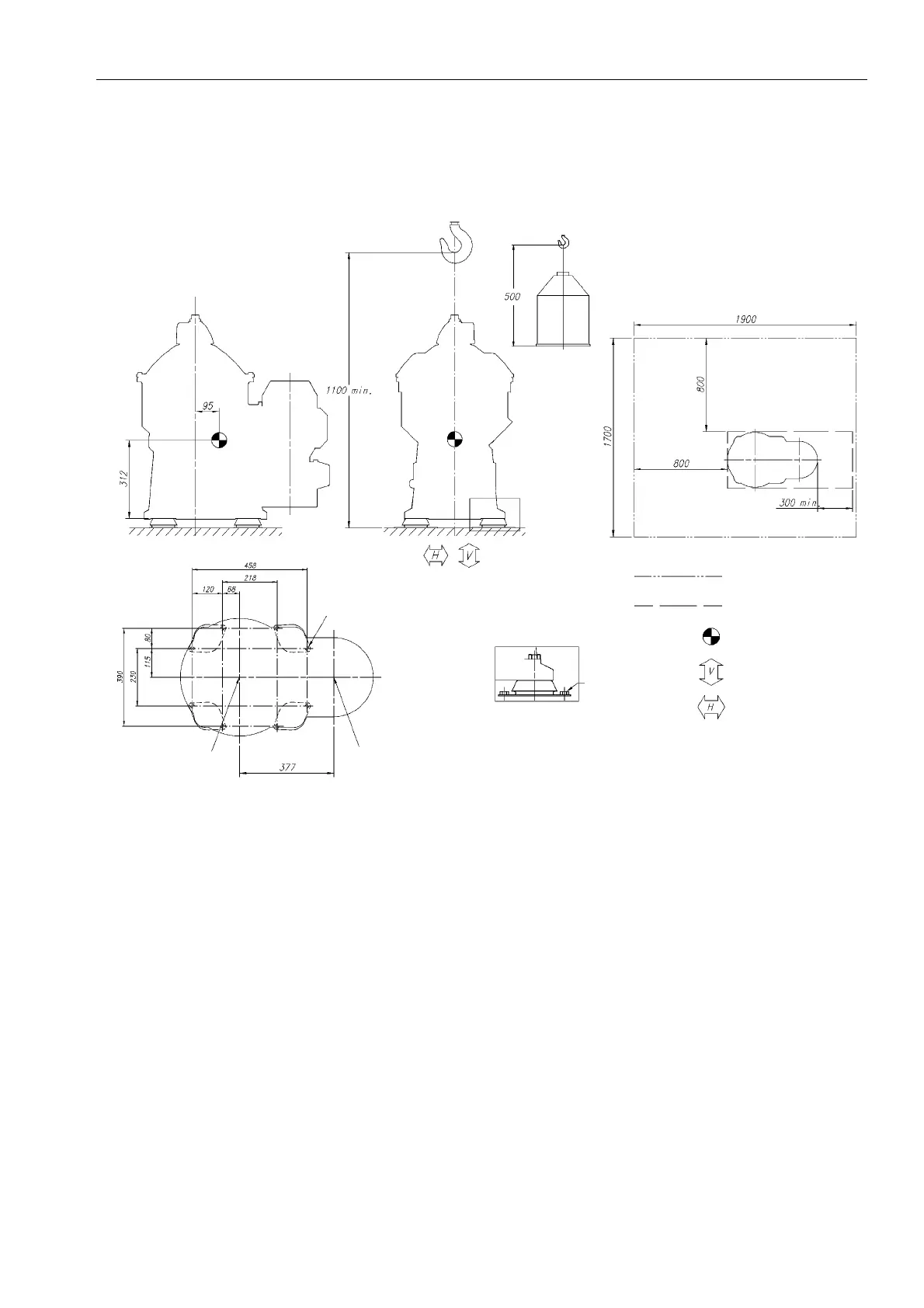

8.6.2 Foundation drawing
Alfa Laval ref. 574284 rev. 1
A Centre of separator bowl.
B Holes for foundation bolts (8x).
C Centre of motor.
D Min. lifting capacity required during service: 300 kg.
E Max. height of largest component incl. lifting tool.
F Service side.
G Foundation bolts.
H Installation according to stated foundation force.
Foundation turnable 360
o
I Recommended free floor space for unloading when
doing service.
J No fixed installation within this area.
K Centre of gravity (complete machine).
L Dynamic forces (static force excluded)
From separator do not exceed;
Force in any separator foot;
Vertical ± 8 kN
Horizontal ± 8 kN
M Total foundation force (sum of all feet)
Vertical ± 8 kN
Horizontal ± 8 kN
G09776A1
A
B
C
D
E
F
G
H
I
J
K
L
M
