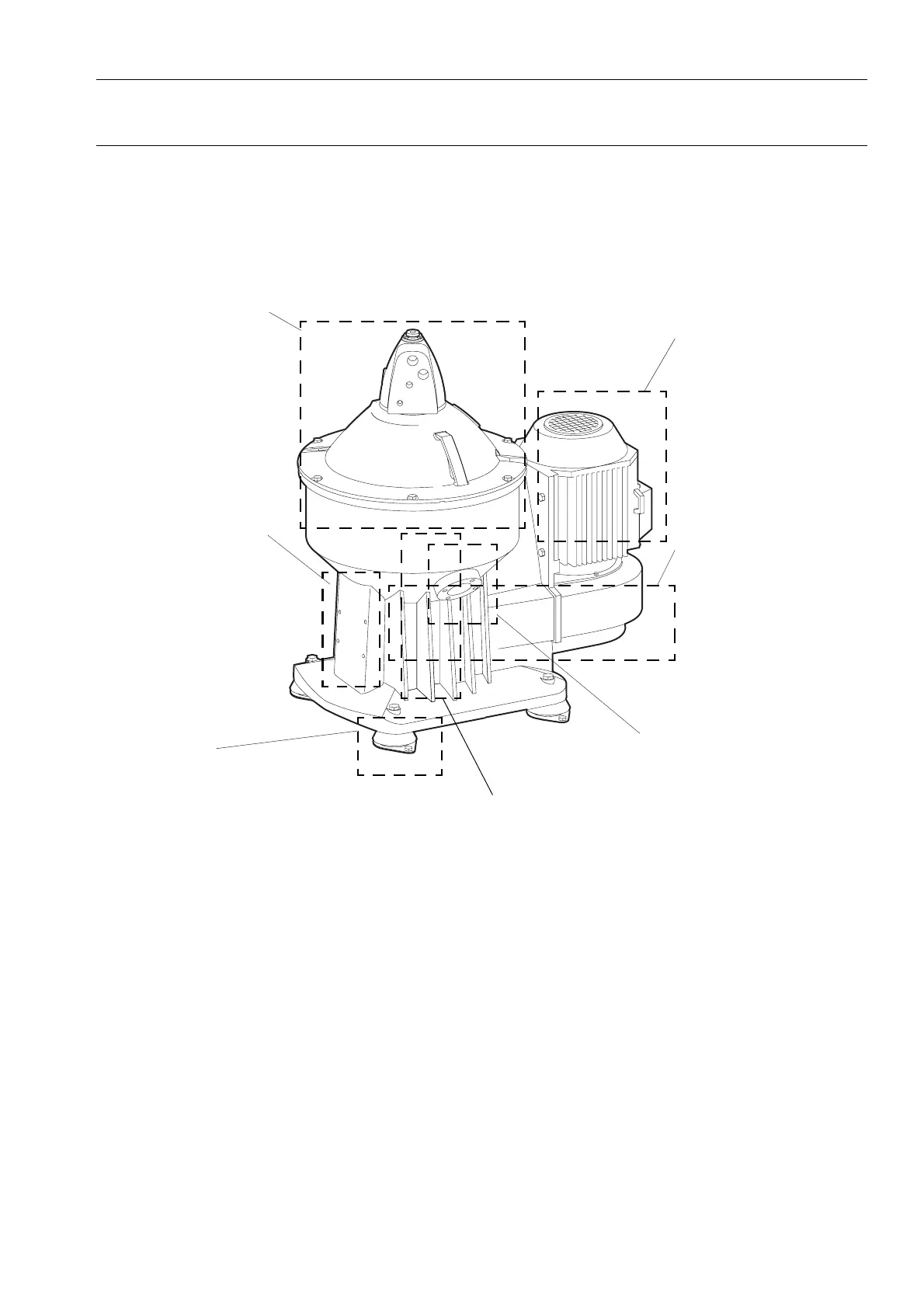

Process section
The feed inlet and outlets
are situated at the top of
the separator.
The liquid is cleaned in the
rotating separator bowl
inside the frame hood.
Drive section
The rotating separator
bowl is driven by a flat
belt transmission with
friction coupling.
Frame feet
The separator rests
on vibration damping
frame feet.
Sludge outlet
Separated solids are discharged at
preset intervals.
Electric motor
The rotating bowl is driven
by the electric motor via a
belt transmission.
Sensors
The separator is monitored
by a speed sensor. An
unbalance sensor and a
interlocking switch is
optional.
Lubrication system
Lubricates the bearings driven
by the flat belt transmission
