6.8 LIFTING INSTRUCTIONS 6 SERVICE, DISMANTLING, ASSEMBLY
140
5 Unscrew the foundation bolts.
6 When lifting and moving the separator, follow
normal safety precautions for lifting large
heavy objects.
6.8.2 Lifting the bowl
When lifting and moving an assembled
bowl, always follow these instructions.
1 Fit the lifting tool with lifting eyes to the bowl
assembly.
2 Check that the lock ring is mounted correctly
before lifting the complete bowl.
3 Lift the bowl using a sling with the proper
rating.
W
A
R
N
I
N
G
!
Crush hazards
A falling separator can cause accidents resulting
in serious injury and damage.
Never lift the separator by any other method than
described in this manual.
N
O
T
E
When lifting parts without weight specifications,
always use lifting straps with the capacity of at
least 500
kg.
N
O
T
E
Never try to lift the bowl while it is still in the frame.
The bowl body is fastened to the frame with the
cap nut.

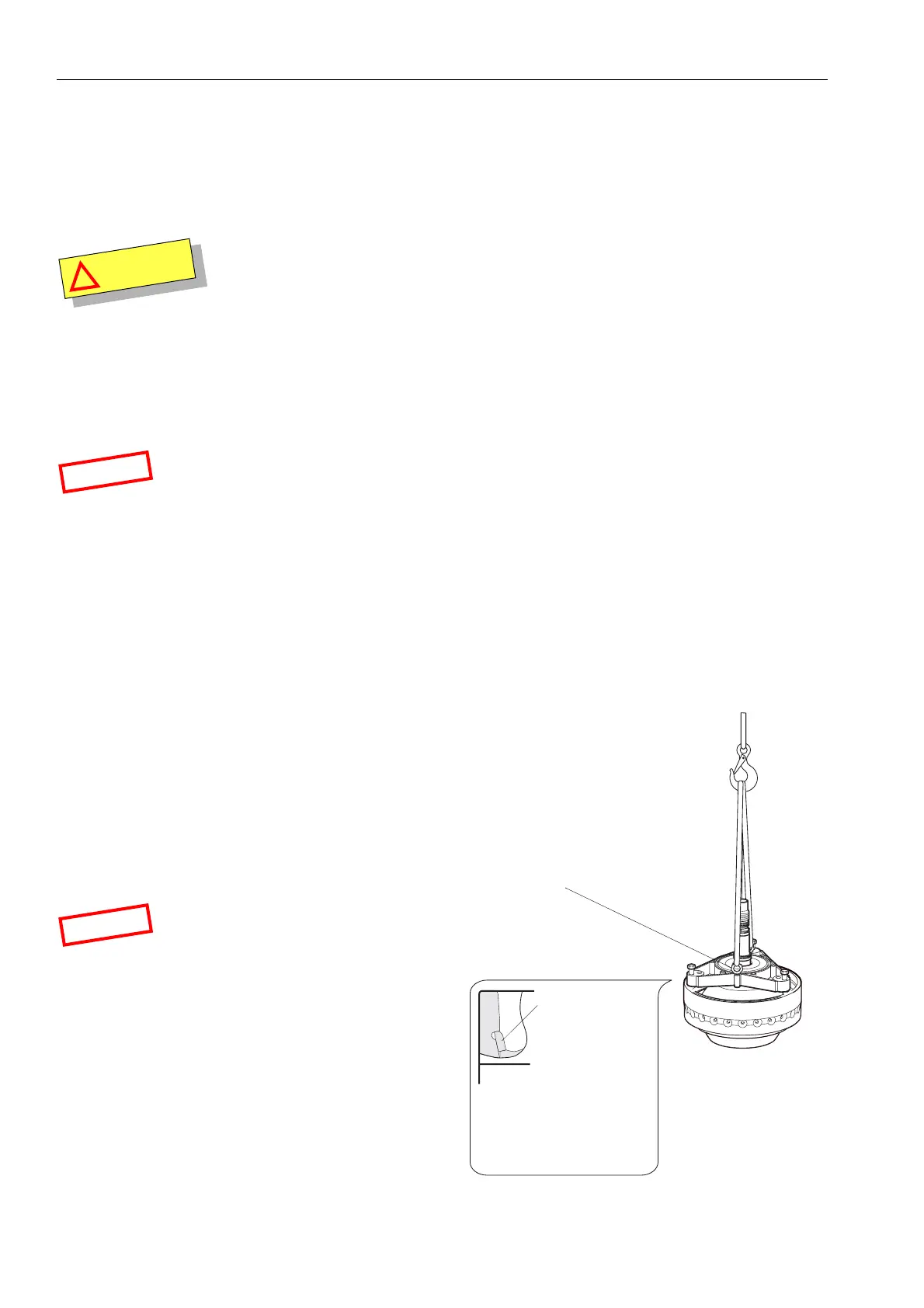

G0868471
Weight to lift 37 kg
Make sure that
lock ring is fitted.
Lock ring
Tightening torque 35 - 45 Nm
