6 SERVICE, DISMANTLING, ASSEMBLY 6.3 DISMANTLING

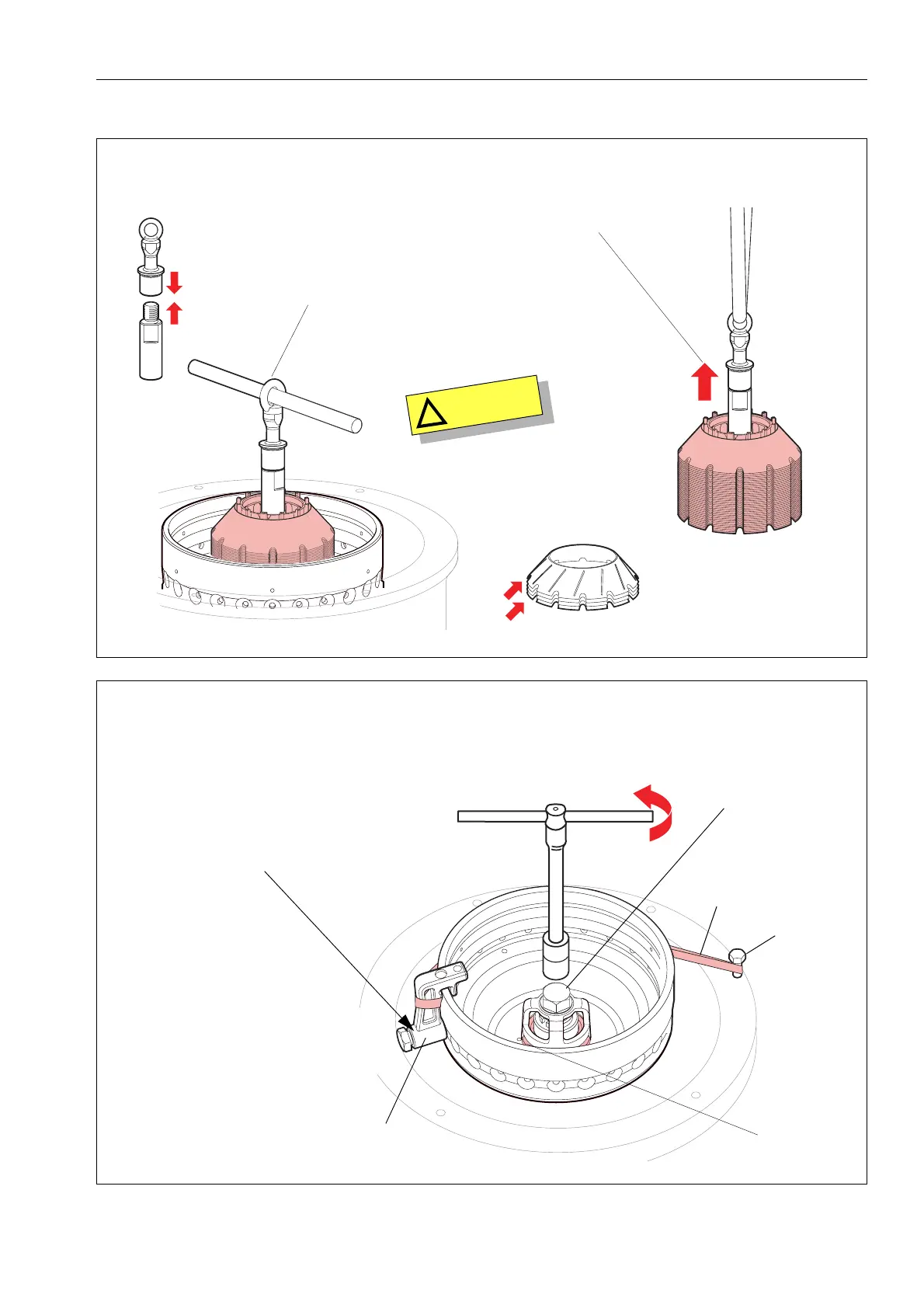

6 Removing the disc stack and distributor.
7 Removing the nut
G0863161
b Fit the assembled tool into the
distributor and ease off the disc stack.
c Carefully lift off the
disc stack assembly.
C
A
U
T
I
O
N
!
Cut hazard
Sharp edges on the separator
discs may cause cuts
a Assemble the lifting tool with the pin.
G0923861
b Use the spanner
for nut to remove
the nut.
Nut
a To prevent the bowl body from rotating
when removing the nut;
Fit one of the clamps (see page 51) to
the bowl body and one of the screws
for the frame hood in the frame. Fasten
a sling between the clamp and the
screw around the bowl body.
Clamp
Screw
Sling
