Alfa Laval S 821 - Fitting Disc Stack Assembly to Bowl Body

6.5 ASSEMBLY 6 SERVICE, DISMANTLING, ASSEMBLY
116

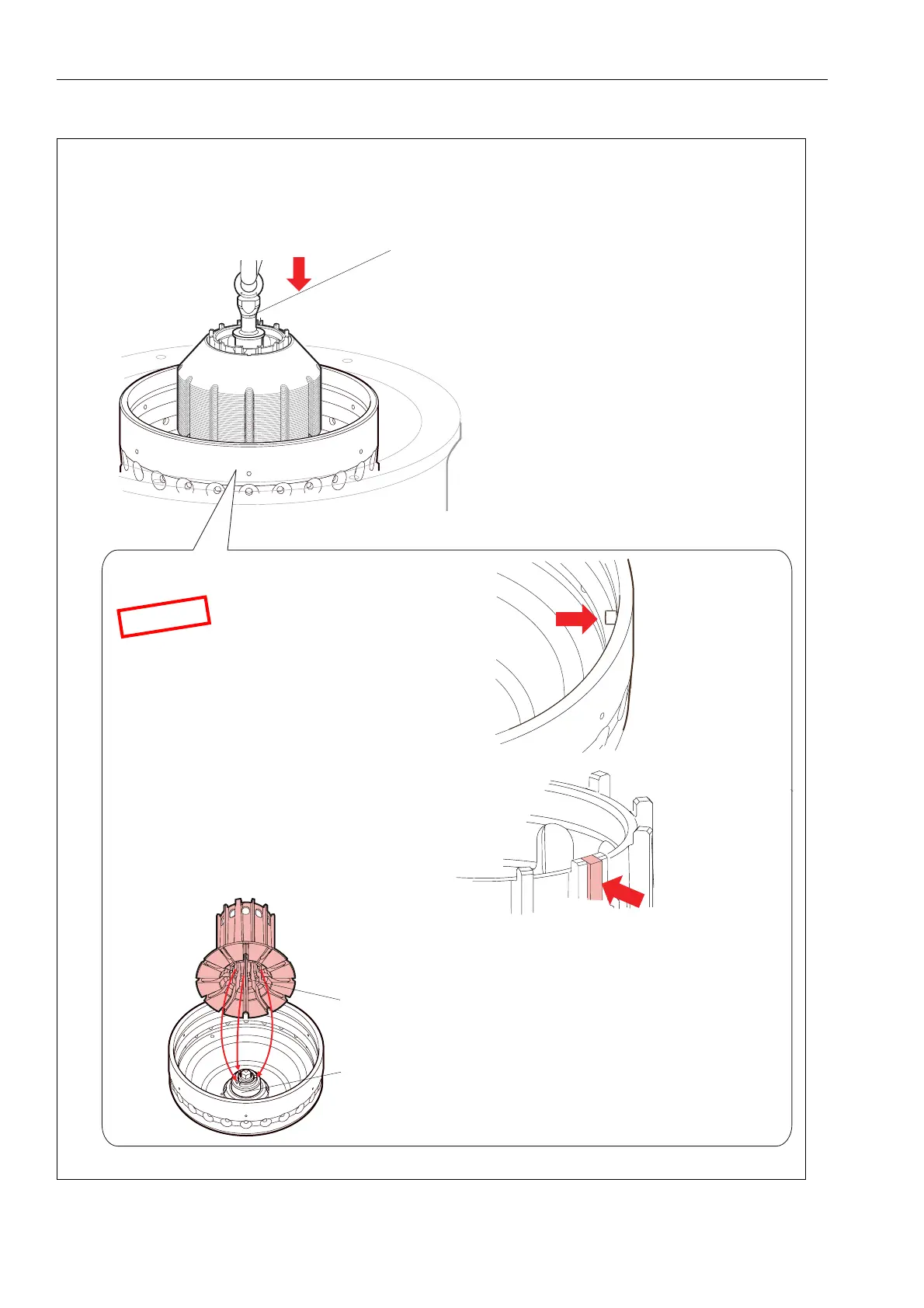

10 Fitting the disc stack assembly to the bowl body.
G0862171
a Fit the lifting tool into the
distributor.
b Lower the disc stack into the bowl.
N
O
T
E
The guide pin on the bowl body should face
the guide rib on the distributor.
The guide ribs inside the distributor then
enter the recesses on the bowl body nave.
Guide rib on
distributor
Guide pin on bowl
body
Guide ribs inside the distributor.
Recesses on the bowl body nave.
